| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

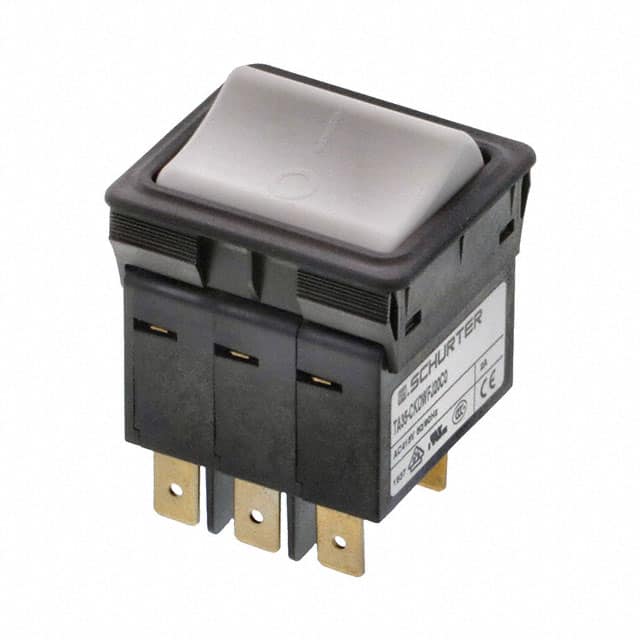

This Schurter Inc. 4435.0285 is a thermal circuit breaker designed for reliable circuit protection. It operates with a rated voltage of 240 VAC and has a current rating range of 0.05 to 12 A, with this specific unit rated at 2A.
The breaker features a 3-pole configuration and a rocker actuation type, suitable for panel mounting. It offers a conditional short circuit capacity of 2 kA at 415 VAC and meets IP40 degree of protection on the front side.
Key electrical specifications include a dielectric strength greater than 2.5 kV at 50 Hz and insulation resistance greater than 100 MΩ at 500 VDC. The mechanical lifetime is rated for 50,000 switching cycles. Operating temperatures range from -30°C to 60°C.
Approvals include VDE, UL, and CCC. This component is designed for industrial environments and applications such as power tools, medical equipment, and industrial appliances.
415Y/240 VAC.
-30 to 60°C.
Panel mount.
2A.
3 poles.
Thermal.
Rocker.
