| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

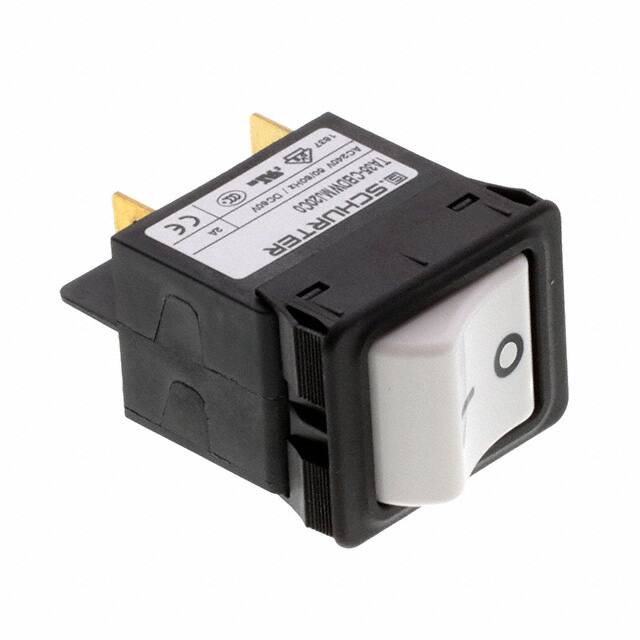

This Schurter Inc. 4435.0279 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It offers a rated current of 2A and can handle AC voltages up to 240V and DC voltages up to 60V. The breaker features a thermal tripping type and a rocker actuator for operation.
With a panel mount design, this circuit breaker is suitable for various industrial applications. It has a conditional short circuit capacity of 2 kA at 240 VAC and meets IP40 degree of protection on the front side. The operating temperature range is -30 °C to 60 °C, and it has a mechanical lifetime of 50,000 switching cycles.
Key electrical specifications include a dielectric strength of over 2.5 kV at 50 Hz and an insulation resistance greater than 100 MΩ at 500 VDC. The breaker also includes overload protection features for both IEC and UL/CSA standards.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and equipment for construction. Its robust design and specifications make it a dependable choice for protecting electrical circuits.
The circuit breaker is rated for 240 VAC and 60 VDC, with a UL/CSA rating of 277 VAC.
The rated current is 2 A, with a magnetic trip range supporting up to 16 A.
The allowable operating temperature is -30 °C to 60 °C.
The circuit breaker is panel mounted.
The front side is rated IP40 according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
Dielectric strength is greater than 2.5 kV at 50 Hz and greater than 4 kV impulse.
