| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

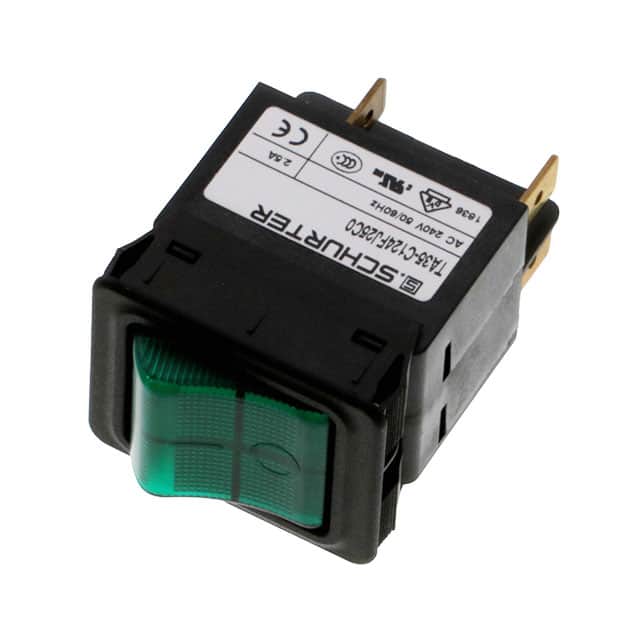

This Schurter Inc. 4435.0275 circuit breaker is a thermal type designed for reliable circuit protection. It operates with a rated voltage of 240 VAC and 60 VDC, and has a current rating of 2.5A. The breaker features a 2-pole configuration and a rocker actuation type, making it suitable for various industrial and commercial applications.
With a snap-in mounting type, this circuit breaker offers ease of installation. It is built to withstand demanding environments, featuring a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30°C to 60°C. The ingress protection rating for the front side is IP40.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its thermal tripping mechanism ensures protection against overloads, while the option for thermal-magnetic tripping provides short-circuit protection.
The rated current is 2.5A AC, with a rated current range of 0.05 to 20A AC.
It supports 240VAC (IEC), 277VAC (UL/CSA), and 60VDC.
The allowable operating temperature range is -30°C to 60°C.
It uses a rocker actuator with green illumination.
It is panel mounted with a snap-in installation method.
The mechanical lifetime is 50,000 switching cycles.
The front side is rated IP40 according to IEC 60529.
