| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

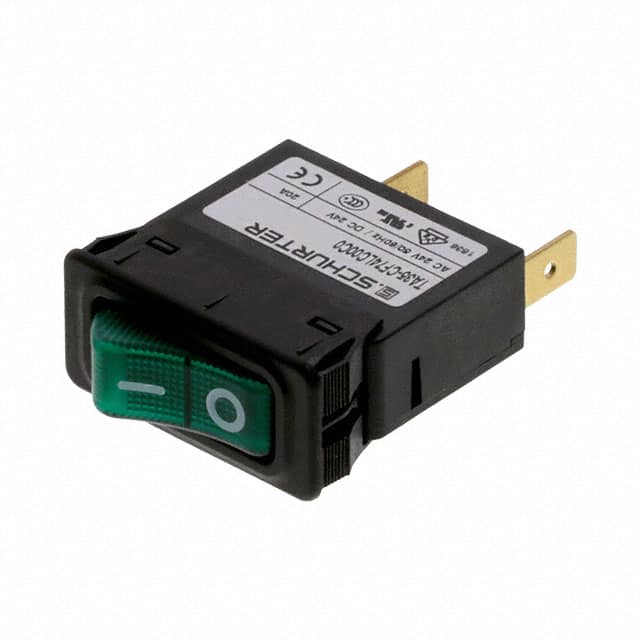

The Schurter 4435.0274 is a thermal circuit breaker designed for reliable circuit protection in various applications. This 1-pole device features a rocker actuation type and a panel mount design for easy integration into equipment.
Key electrical specifications include a rated voltage of 240 VAC (IEC) and 277 VAC (UL/CSA), with a DC rating of 32 VDC. The current rating range spans from 0.05 A to 20 A. It offers a conditional short circuit capacity of 2 kA at 240 VAC.
Mechanical and environmental characteristics include a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30 °C to 60 °C. The degree of protection on the front side is IP40.
This circuit breaker is suitable for applications such as power tools, medical and laboratory equipment, industrial appliances, and cleaning equipment. Its robust design and configurable options make it a versatile choice for demanding environments.
The circuit breaker is rated for 240 VAC under IEC standards and 277 VAC under UL/CSA standards.
The allowable operating temperature range is -30 °C to 60 °C.
The front side is protected to IP40 according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
The dielectric strength is greater than 2.5 kV at 50 Hz and greater than 4 kV impulse.
