| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

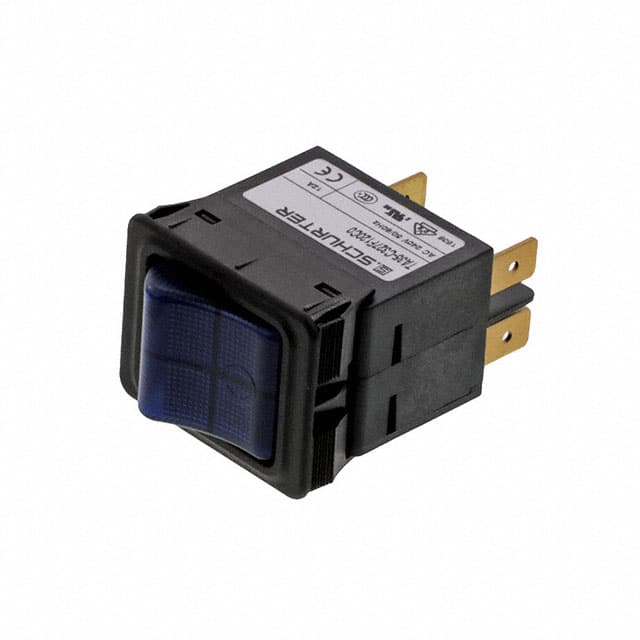

The Schurter Inc. 4435.0273 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It offers a rated current of 12A and operates at up to 240VAC and 60VDC.
Key electrical specifications include a conditional short circuit capacity of 2 kA at 240 VAC and a dielectric strength of over 2.5 kV at 50 Hz. The breaker has a mechanical lifetime of 50,000 switching cycles and specific AC and DC lifetime ratings under defined conditions.
This circuit breaker features a thermal tripping type and a thermal-magnetic tripping capability. It has a panel mount design and a rocker actuation type. The operating temperature range is from -30°C to 60°C, with a storage temperature range of -40°C to 60°C.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. It provides essential protection against overloads and short circuits in various equipment.
The rated current is 12A, with an AC current range of 0.05 to 20 A.
It is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 60 VDC.
The allowable operating temperature range is -30 °C to 60 °C.
It uses a rocker actuator with blue illumination.
The mechanical lifetime is 50,000 switching cycles.
The front side has an IP40 degree of protection according to IEC 60529.
