| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

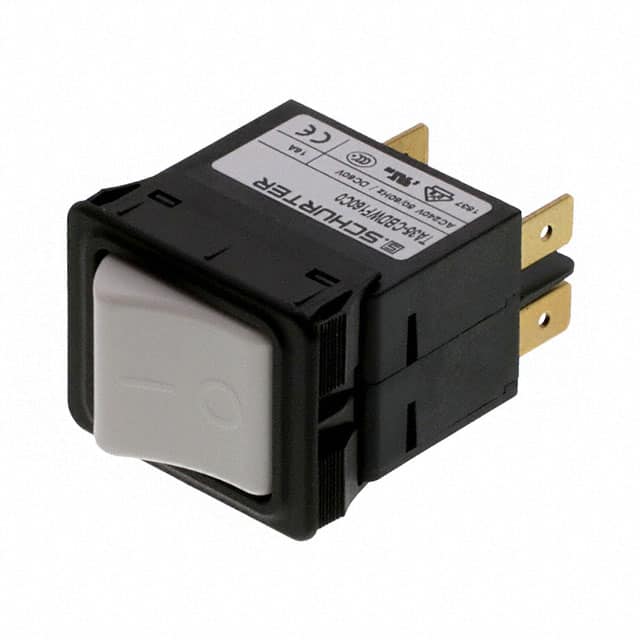

This Schurter Inc. TA35 series circuit breaker is a thermal type, offering reliable protection for various equipment. It is designed for panel mounting and features a rocker actuator for easy operation. The breaker has a 2-pole configuration, a rated current of 16A, and can handle voltages up to 240 VAC or 60 VDC.
Key technical specifications include a conditional short circuit capacity of 2 kA at 240 VAC, an operating temperature range of -30°C to 60°C, and a mechanical lifetime of 50,000 switching cycles. The front side offers IP40 protection according to IEC 60529.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its robust design and thermal tripping mechanism make it suitable for demanding environments requiring precise overcurrent protection.
The 4435.0271 is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 60 VDC.
The allowable operating temperature range is -30 °C to 60 °C.
The circuit breaker has a rated current of 16A.
It uses a rocker actuator.
The mechanical lifetime is 50,000 switching cycles.
