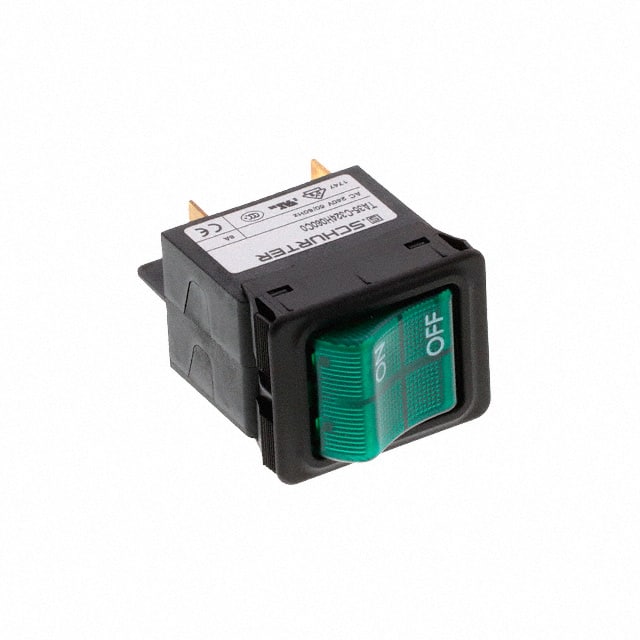

The Schurter Inc. 4435.0265 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It offers a rated current of 6A and operates at up to 240 VAC or 60 VDC.
This breaker features a thermal tripping type and a rocker actuation for ease of use. It is designed for panel mounting, making it suitable for integration into various equipment. The device also includes approvals from CSA, EN, GB, IEC, and UL standards, ensuring compliance and safety.
Key specifications include a conditional short circuit capacity of 2 kA at 240 VAC, an operating temperature range of -30 °C to 60 °C, and a mechanical lifetime of 50,000 switching cycles. Its degree of protection is IP40 on the front side.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances, providing essential protection against overloads and short circuits.
The rated voltage is 240 VAC and 60 VDC.
The rated current is 6A.
This circuit breaker has 2 poles.
It uses a rocker actuator.
The allowable operation temperature is -30 °C to 60 °C.
Approval agencies include CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
