| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

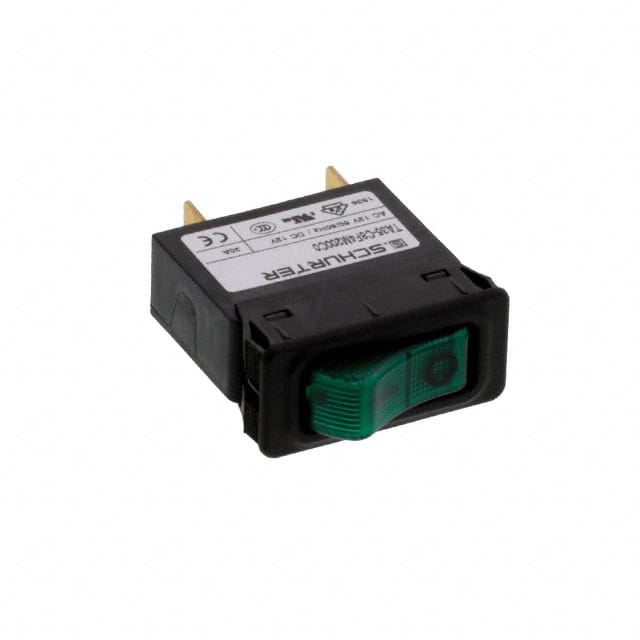

The Schurter Inc. 4435.0261 is a 1-pole thermal circuit breaker designed for equipment protection. It features a rocker actuation and a snap-in mounting version for panel mount applications.
This circuit breaker has a rated AC voltage of 240 VAC (IEC) or 277 VAC (UL/CSA) and a rated DC voltage of 32 VDC. The current rating ranges from 0.05 A to 20 A. It offers a conditional short circuit capacity of 2 kA at 240 VAC according to IEC 60934.
Environmental specifications include a front-side degree of protection of IP40. The operating temperature range is -30 °C to 60 °C, and the storage temperature range is -40 °C to 60 °C. Mechanical lifetime is rated at 50,000 switching cycles.
Applications for this thermal circuit breaker include power tools, medical and laboratory equipment, industrial appliances, equipment for construction, cleaning equipment, and commercial and household kitchen appliances.
The circuit breaker is rated for 240VAC (IEC), 277VAC (UL/CSA), and 32VDC.
The operating temperature range is -30°C to 60°C.
The mounting type is panel mount.
This specific model is rated for 20A continuous current.
Dielectric strength is >2.5kV at 50Hz and >4kV impulse voltage.
Mechanical lifetime is 50,000 switching cycles.
The front side has IP40 protection per IEC 60529.
