| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

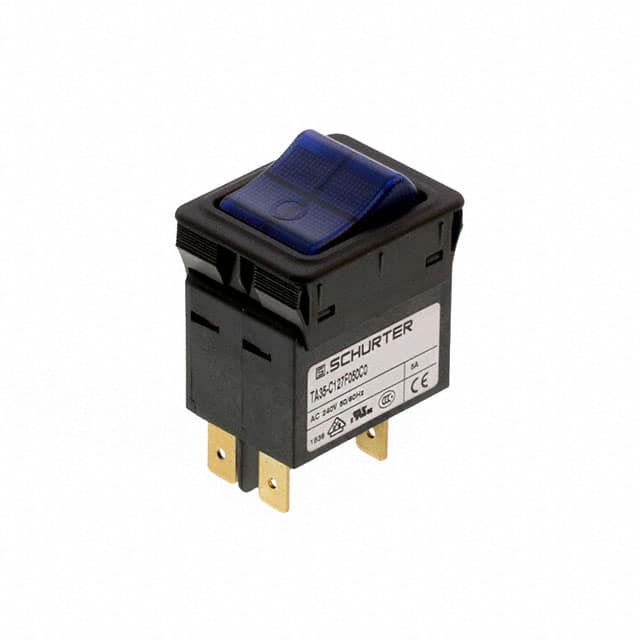

This Schurter Inc. 4435.0246 is a thermal circuit breaker from the TA35 series, suitable for various industrial applications. It offers a 2-pole configuration with a rocker actuation type and a panel mount design for easy integration into equipment.
The breaker is rated for 240 VAC and 60 VDC, with a current rating of 5A. It provides thermal tripping for overload protection and can handle a conditional short circuit capacity of 2 kA at 240 VAC. The operating temperature range is -30 °C to 60 °C.
Key specifications include a mechanical lifetime of 50,000 switching cycles and an insulation resistance of over 100 MΩ at 500 VDC. The front side offers IP40 protection according to IEC 60529.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The breaker is rated for 240 VAC (IEC) / 277 VAC (UL/CSA) and 60 VDC.
-30°C to 60°C.
Panel mount, supplied in bulk.
5A continuous, with a rated current range of 0.05-20 A AC.
Thermal, with thermal-magnetic possible.
50,000 switching cycles.
IP40 on the front side.
