| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

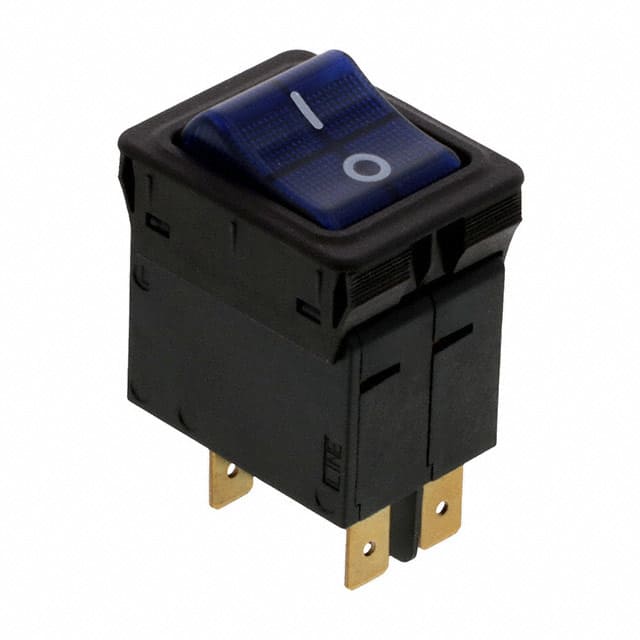

This Schurter Inc. thermal circuit breaker, part number 4435.0245, is designed for reliable overcurrent protection. It features a 1-pole configuration with a rocker actuation type and panel mount for easy integration into equipment.
The breaker offers a rated AC voltage of 240 VAC and a DC voltage rating of 32 VDC. Its current rating ranges from 0.05 to 20 A, with this specific model set at 5A. The device operates based on thermal tripping and has a mechanical lifetime of 50,000 switching cycles.
Key electrical specifications include a conditional short circuit capacity of 2 kA at 240 VAC. Environmental and mechanical resilience are supported by a degree of protection of IP40, vibration resistance, and shock resistance ratings. The operating temperature range is -30 °C to 60 °C.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
Rated 240 VAC (277 VAC for UL/CSA) and 32 VDC.
5 A (0.05 to 20 A range AC).
-30°C to 60°C.
Panel mount.
Thermal tripping.
Rocker actuator with clear illumination at 120V nominal.
50,000 switching cycles.
