| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

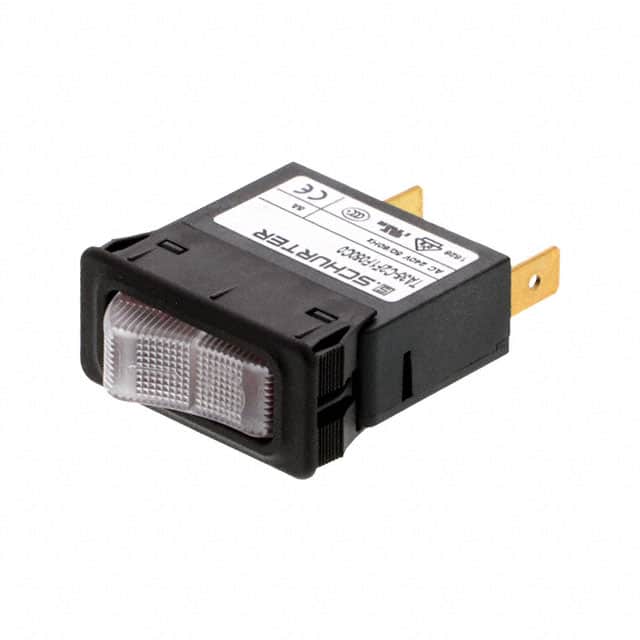

The Schurter Inc. 4435.0244 is a 1-pole thermal circuit breaker from the T- and TA-Line series, designed for reliable circuit protection in various industrial applications. It features a rocker actuation type and a current rating range of 0.05 to 20 A, with this specific model rated at 5A.
This circuit breaker operates at a nominal voltage of 240 VAC (IEC) or 277 VAC (UL/CSA) and 32 VDC. It offers a conditional short circuit capacity of 2 kA at 240 VAC. The device is built for durability with a mechanical lifetime of 50,000 switching cycles and specific AC/DC operational lifetimes.
Designed for panel mounting, the 4435.0244 has an operating temperature range of -30 °C to 60 °C and a degree of protection of IP40 on the front side. It meets stringent electrical and mechanical standards, including specific overload tripping criteria for IEC and UL/CSA.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and cleaning equipment. Its robust construction and thermal tripping mechanism ensure safety and operational continuity.
It is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 32 VDC.
Panel mount; standard package of 100 units.
-30°C to 60°C.
2 kA at 240 VAC per IEC 60934.
Greater than 2.5 kV at 50 Hz and greater than 4 kV impulse.
50,000 switching cycles.
IP40 on the front side per IEC 60529.
