| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

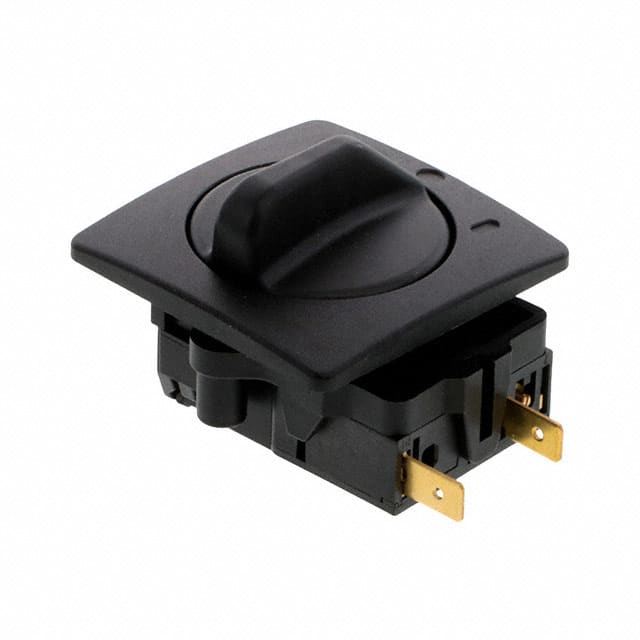

The Schurter Inc. 4435.0242 is a 1-pole thermal circuit breaker designed for supplementary protection in general industrial use. It offers a rated voltage of 240 VAC and 32 VDC, with a current rating range from 0.05 to 20 A. The breaker features a positively trip-free release and a rotary knob actuation for easy operation, even with gloves.
This circuit breaker has a mechanical lifetime of 50,000 switching cycles and an overload capability of a minimum of 40 trips at 6x Ir according to IEC standards. It operates within a temperature range of -30 °C to 60 °C and has a degree of protection of IP40 on the front side.
Applications for the 4435.0242 include power tools, industrial appliances, construction equipment, cleaning equipment, and commercial/household kitchen appliances. It is available without a bezel/knob for customized front panel designs. The part is phase-out, with a last order date of January 31, 2024.
The circuit breaker is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 32 VDC.
-30°C to 60°C.
Thermal.
10 A.
Rotary knob.
Panel mount.
IP40 (front side).
