| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

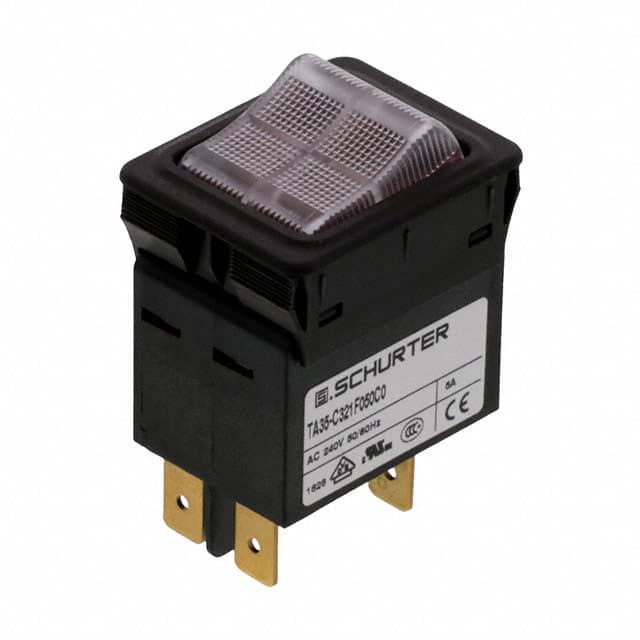

The Schurter Inc. 4435.0238 is a 2-pole thermal circuit breaker with a current rating of 5A. It is designed for panel mounting and features rocker actuation.
This circuit breaker operates with a rated voltage of 240 VAC and 60 VDC. It offers a conditional short circuit capacity of 2 kA at 240 VAC and has a degree of protection of IP40 on the front side. The device has a mechanical lifetime of 50,000 switching cycles.
Key electrical specifications include a dielectric strength of over 2.5 kV (50 Hz) and impulse dielectric strength of over 4 kV (1.2/50 μs). Insulation resistance is rated at over 100 MΩ at 500 VDC. The operating temperature range is from -30 °C to 60 °C.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and equipment for construction.
The rated voltage is 240 VAC (IEC) and 277 VAC (UL/CSA), and 60 VDC.
The allowable operating temperature range is -30°C to 60°C.
The front side has IP40 protection according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
The dielectric strength is greater than 2.5 kV at 50 Hz.
