| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

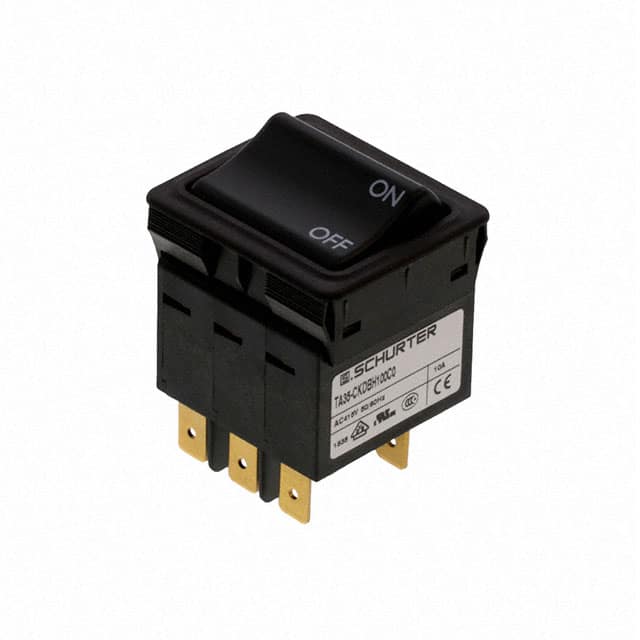

The Schurter Inc. 4435.0235 is a thermal circuit breaker designed for reliable circuit protection. This 3-pole unit features rocker actuation and a panel mount configuration, making it suitable for various industrial and commercial applications.
Key electrical specifications include a rated current range of 0.05 to 12 A AC and a voltage rating of 240 VAC. It offers a conditional short circuit capacity of 2 kA @ 415 VAC. The breaker is built for durability with a mechanical lifetime of 50,000 switching cycles.
Environmental and mechanical data indicate an operating temperature range of -30 °C to 60 °C and a degree of protection of IP40 on the front side. The unit also meets specific vibration and shock resistance standards.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The circuit breaker is rated for 240VAC operation, with a dielectric strength greater than 2.5kV and impulse dielectric strength greater than 4kV.
The allowable operating temperature range is -30°C to 60°C.
The continuous current rating is 10A at 240VAC.
It uses a rocker actuator for manual switching.
It is a 3-pole circuit breaker.
It is designed for panel mount installation.
The mechanical lifetime is 50,000 switching cycles.
