| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

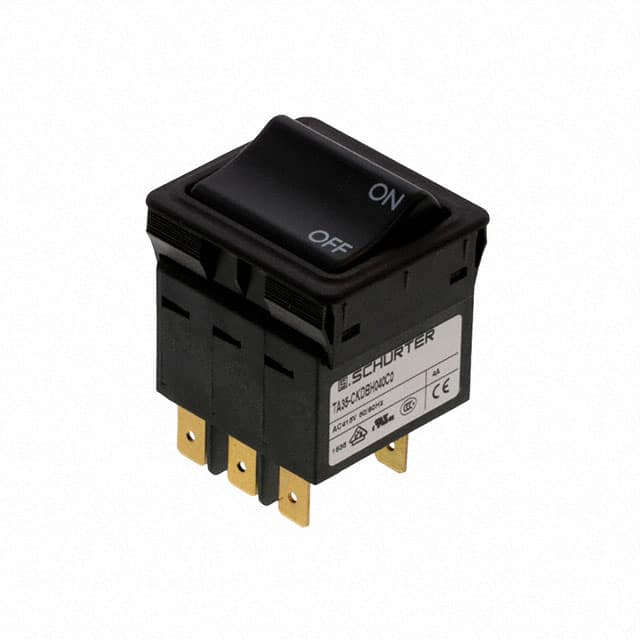

The Schurter 4435.0232 is a thermal circuit breaker designed for overcurrent protection in electrical systems. It is rated for 4A nominal current and can operate at 240VAC or 415VAC (phase-to-neutral), with a rated current range of 0.05 to 12A. The breaker features a rocker actuator and provides a degree of protection of IP40 on the front side.
Electrical characteristics include a dielectric strength greater than 2.5kV at 50Hz and greater than 4kV for impulse voltage (1.2/50μs), with insulation resistance exceeding 100MΩ at 500VDC. The conditional short-circuit capacity is 2kA at 415VAC, and it meets overload requirements per IEC and UL/CSA standards.
The breaker is designed for reliable operation across a wide temperature range, from -30°C to 60°C, and can be stored between -40°C and 60°C. It offers a mechanical lifetime of 50,000 switching cycles, as well as 50,000 cycles under AC and DC load conditions. Vibration and shock resistance are specified per IEC 60068-2-6 and IEC 60068-2-27, respectively.
This thermal circuit breaker is suitable for use in various electrical panels and equipment where reliable overcurrent protection is required. Its rocker actuator provides easy manual reset, and the IP40 front protection helps guard against dust and accidental contact.
The rated voltage is 240 VAC, with a phase-to-neutral rating of 415 VAC for 3-phase systems.
The rated current is 4A, with a rated current range of 0.05 to 12A.
The allowable operating temperature range is -30°C to 60°C.
The degree of protection is IP40 on the front side, according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
The dielectric strength is greater than 2.5 kV at 50 Hz and greater than 4 kV for impulse voltage (1.2/50 μs).
The conditional short-circuit capacity is 2 kA at 415 VAC, according to IEC 60934.
