| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

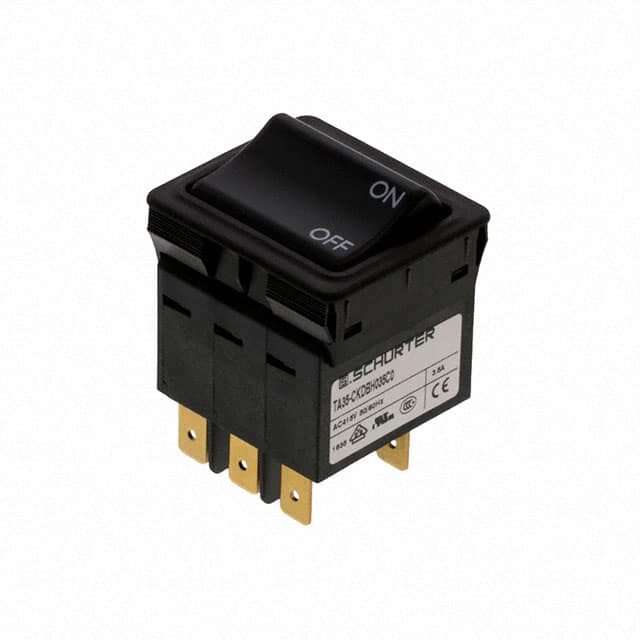

The Schurter Inc. 4435.0231 is a thermal circuit breaker designed for reliable circuit protection. This 3-pole device features a rocker actuation and a current rating of 3.5A at 240VAC, with a higher rated voltage of 415VAC also specified.
Key technical specifications include a conditional short circuit capacity of 2 kA at 415 VAC, dielectric strength exceeding 2.5 kV at 50 Hz, and an insulation resistance greater than 100 MΩ at 500 VDC. The operating temperature range is -30 °C to 60 °C, and it has a mechanical lifetime of 50,000 switching cycles.
This circuit breaker is designed for panel mounting and has a weight of 43.0 - 45.0 g. It is suitable for various industrial applications, including power tools, medical equipment, and industrial appliances.
The device offers a degree of protection of IP40 on the front side. Approvals include VDE, UL, and CCC, indicating compliance with relevant safety standards.
The current rating is 3.5A.
The AC voltage rating is 240 VAC and 415 VAC.
It has 3 poles.
It uses rocker actuation.
The allowable operating temperature range is -30 °C to 60 °C.
The mechanical lifetime is 50,000 switching cycles.
