| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

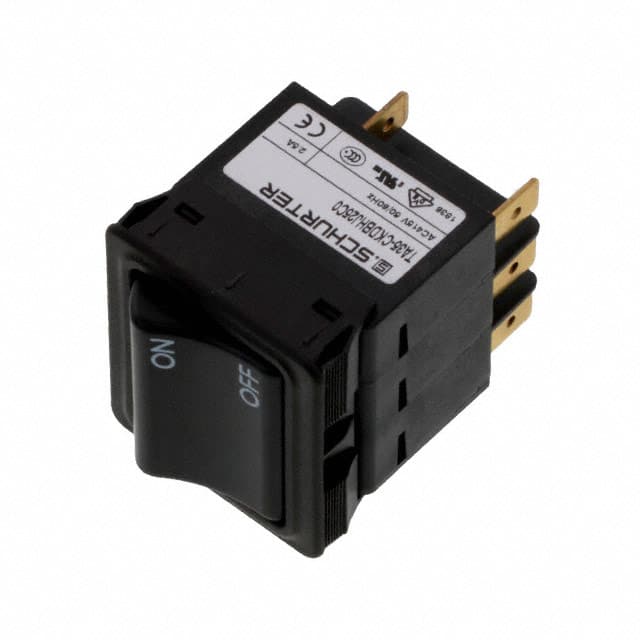

The Schurter Inc. 4435.0229 is a thermal circuit breaker designed for overcurrent protection in electrical circuits. It is rated for a continuous current of 2.5 A and can operate at voltages up to 415 VAC (240 VAC per the product title). The breaker features a thermal tripping mechanism and a rocker actuator for manual reset.
Key electrical specifications include a dielectric strength greater than 2.5 kV at 50 Hz and greater than 4 kV impulse, insulation resistance exceeding 100 MΩ at 500 VDC, and a conditional short circuit capacity of 2 kA at 415 VAC. The mechanical and electrical lifetime is rated at 50,000 switching cycles under specified conditions.
The device is panel mounted with an IP40 degree of protection on the front side. It can operate in ambient temperatures from -30 °C to 60 °C and can be stored between -40 °C and 60 °C. The breaker weighs approximately 43 to 45 grams and is suitable for industrial control panels, power distribution, and HVAC systems.
415 VAC (or 240 VAC depending on configuration).
-30 °C to 60 °C.
2.5 A.
Thermal.
Panel mount.
IP40 front side.
50,000 switching cycles.
