| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating |

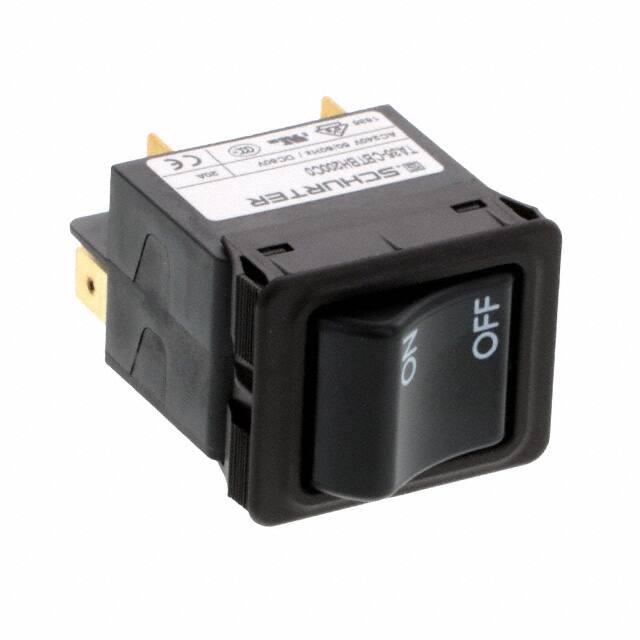

The Schurter Inc. 4435.0225 is a 2-pole thermal circuit breaker with a rocker actuation type, suitable for panel mounting. It offers a rated current range of 0.05 to 20A AC and a rated voltage of 240 VAC (277 VAC UL/CSA) and 60 VDC.
This circuit breaker provides thermal tripping and has a conditional short circuit capacity of 2 kA at 240 VAC. It is designed for a wide range of applications including power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
Key specifications include a mechanical lifetime of 50,000 switching cycles, an operating temperature range of -30 °C to 60 °C, and a degree of protection of IP40 on the front side. The device also features a positively trip-free release mechanism and is available in various configurations.
Applications for this circuit breaker include industrial power systems, industrial lighting arrays, and equipment for construction. Its robust design and thermal protection make it a reliable choice for demanding environments.
240 VAC (IEC), 277 VAC (UL/CSA), and 60 VDC.
-30°C to 60°C.
Panel Mount.
Thermal-Magnetic.
0.05 to 20 A AC (magnetic up to 16 A).
IP40 on the front side according to IEC 60529.
>2.5 kV at 50 Hz and >4 kV at 1.2/50 μs.
