| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

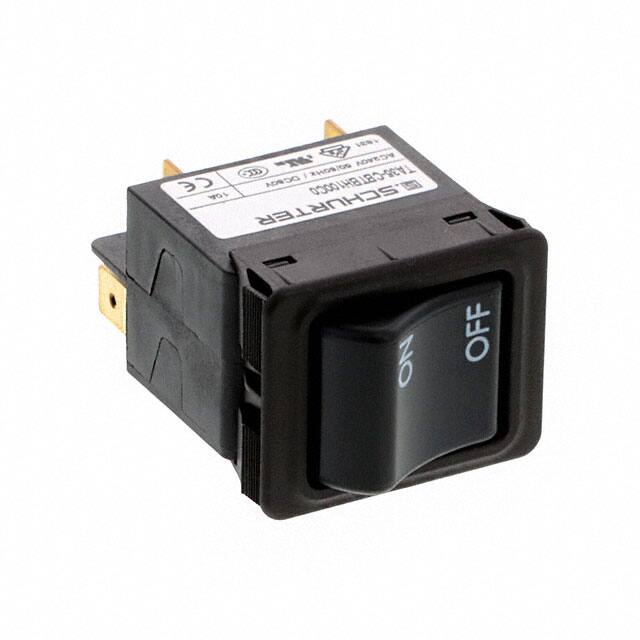

This Schurter Inc. 4435.0222 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It offers a rated current of 10A and operates at 240 VAC or 60 VDC.
The breaker features a rocker actuation type and a panel mount for easy integration into equipment. Its thermal tripping mechanism ensures protection against overloads, while the optional magnetic release provides short-circuit protection. The device is built to withstand demanding environments, with a wide operating temperature range of -30 °C to 60 °C.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its robust construction and compliance with IEC standards make it suitable for various industrial and commercial uses.
The rated current is 10A.
It is rated for 240VAC (IEC), 277VAC (UL/CSA), and 60VDC.
The allowable operation temperature is -30°C to 60°C.
The front side is protected to IP40 according to IEC 60529.
The mechanical lifetime is a minimum of 50,000 switching cycles.
The dielectric strength is greater than 2.5 kV at 50 Hz and greater than 4 kV impulse.
The mounting type is panel mount.
