| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Termination Style | |
| Voltage Rating | |
| Weight |

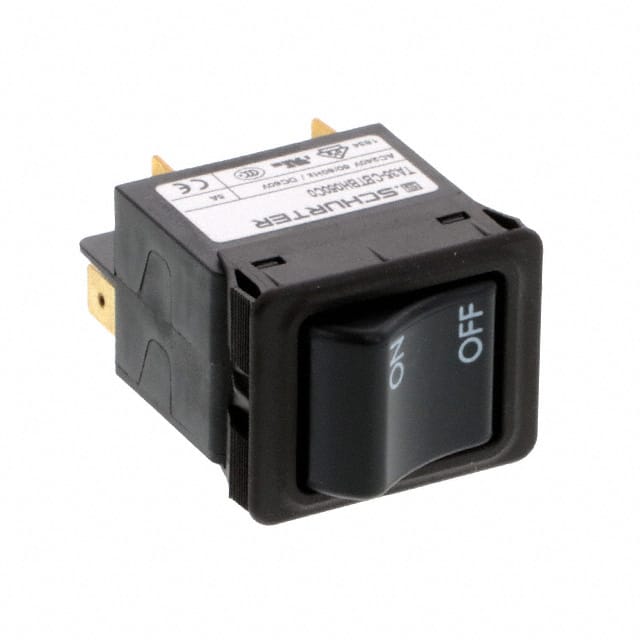

The Schurter Inc. 4435.0219 is a 2-pole thermal circuit breaker from the TA35 series, suitable for panel mounting. It features thermal-magnetic tripping and a rocker actuation type.
This circuit breaker has a rated AC voltage of 240 VAC and a rated DC voltage of 60 VDC, with a current rating of 5A. It offers a conditional short circuit capacity of 2 kA at 240 VAC. The device is designed for a wide operating temperature range of -30 °C to 60 °C.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. It provides positively trip-free release and has a mechanical lifetime of 50,000 switching cycles.
The degree of protection on the front side is IP40. The unit has a weight of 32g (magnetic module) or 56g (overall).
It is rated for 240VAC (IEC), 277VAC (UL/CSA), and 60VDC.
5A.
Thermal and thermal-magnetic.
-30°C to 60°C.
Panel mount with Faston terminals.
IP40 on the front side.
50,000 switching cycles.
