| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

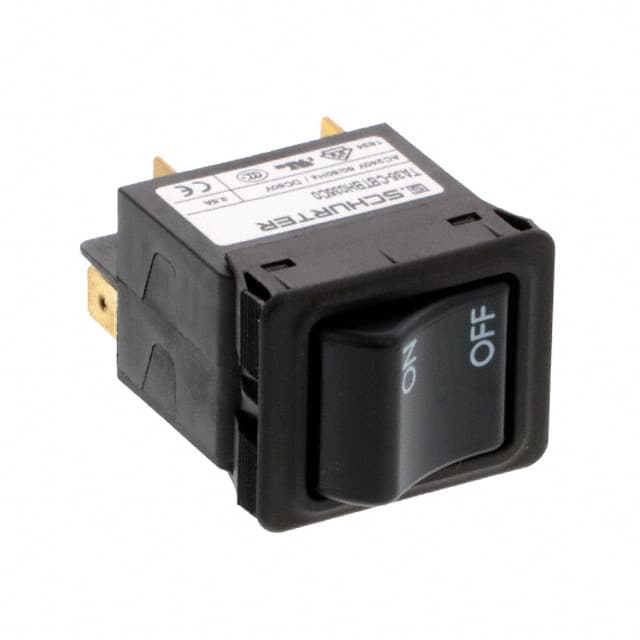

This Schurter Inc. 4435.0217 is a thermal circuit breaker with a 2-pole configuration, suitable for panel mounting applications. It features a rated current of 3.5A and a rated AC voltage of 240V, with a DC voltage rating of 60V.
The circuit breaker operates within a temperature range of -30°C to 60°C and has a mechanical lifetime of 50,000 switching cycles. It provides a conditional short circuit capacity of 2 kA at 240 VAC and meets IP40 degree of protection on the front side.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. It is designed for reliable short-circuit protection and overload protection.
Environmental compliance includes RoHS3 status. The device has a degree of protection of IP40 on the front side.
The rated voltage is 240VAC and 60VDC.
-30°C to 60°C.
Thermal-magnetic.
2 poles.
50,000 switching cycles.
IP40 on the front side.
Panel mount.
