| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

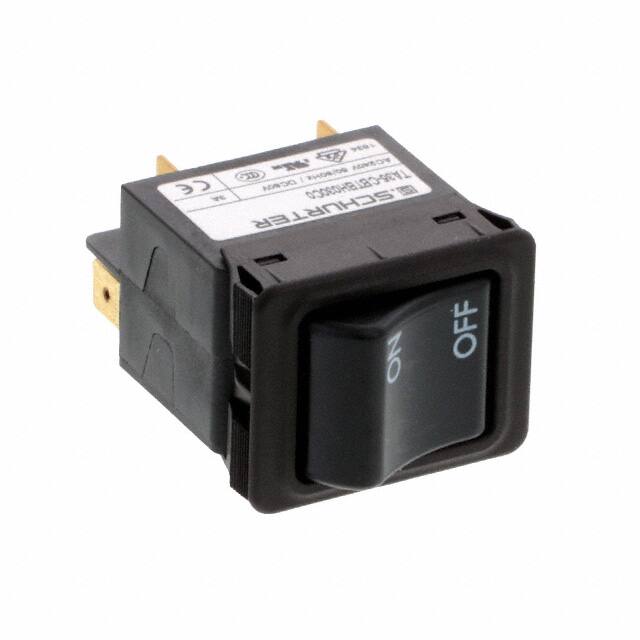

The Schurter 4435.0216 is a 2-pole thermal circuit breaker designed for panel mount applications. It is rated for 3A continuous current and can handle voltages up to 240VAC (IEC) or 277VAC (UL/CSA) and 60VDC. The breaker features a rocker actuator and provides thermal tripping with a mechanical life of 50,000 cycles. It offers dielectric strength greater than 2.5kV (50Hz) and impulse withstand of 4kV. The front side is IP40 protected. Operating temperature range is -30°C to 60°C. This breaker is suitable for overcurrent protection in various industrial and commercial equipment.
It is rated for 240VAC (IEC) and 277VAC (UL/CSA) and 60VDC.
-30°C to 60°C.
Panel mount.
2 poles.
Thermal (with possible thermal-magnetic).
50,000 switching cycles.
>2.5kV at 50Hz and >4kV impulse.
