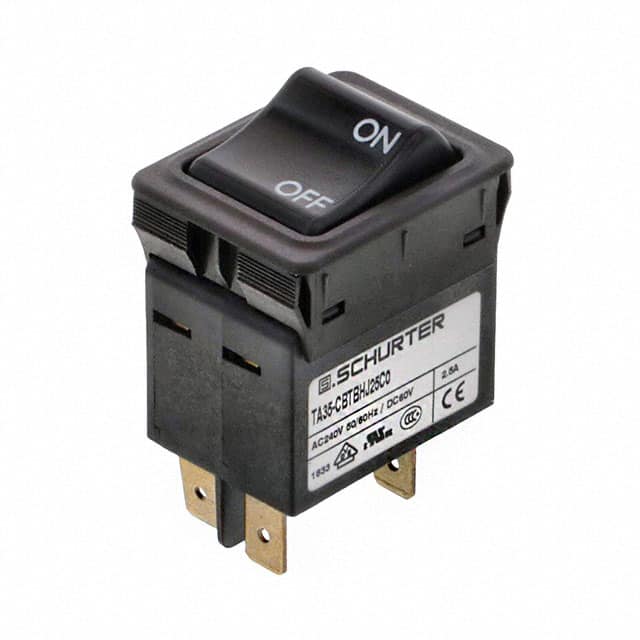

The Schurter 4435.0215 is a 2-pole thermal circuit breaker designed for reliable circuit protection in various applications. It offers a current rating of 2.5A and a voltage rating of 240VAC (IEC) or 277VAC (UL/CSA), with a DC rating of 60VDC.
This circuit breaker utilizes a thermal tripping mechanism and features a rocker actuation type for easy operation. It is designed for panel mounting, making it suitable for integration into industrial appliances, medical equipment, power tools, and construction equipment. The device provides a conditional short circuit capacity of 2 kA at 240VAC.
With a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30°C to 60°C, the 4435.0215 is built for durability and consistent performance in demanding environments. Its IP40 degree of protection on the front side ensures resistance against solid objects.
The rated AC voltage is 240 VAC (IEC) or 277 VAC (UL/CSA), and the rated DC voltage is 60 VDC.
The allowable operating temperature range is -30 °C to 60 °C.
It uses a rocker actuator.
The front side has an IP40 degree of protection according to IEC 60529.
The dielectric strength is greater than 2.5 kV at 50 Hz.
It is rated for 50,000 switching cycles for both mechanical and electrical (AC and DC) operations.
