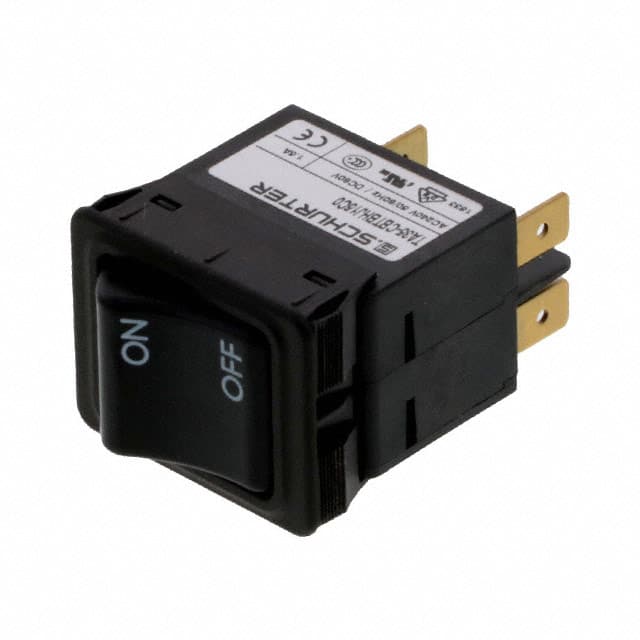

The Schurter Inc. 4435.0213 is a 2-pole thermal circuit breaker with a rocker actuation type, suitable for panel mounting. This device operates within a rated voltage of 240 VAC and 60 VDC, with a current rating of 1.5A. It offers thermal tripping and a conditional short circuit capacity of 2 kA at 240 VAC.
The circuit breaker is designed for durability, with a mechanical lifetime of 50,000 switching cycles. It operates within an allowable temperature range of -30 °C to 60 °C and has a degree of protection of IP40 on the front side. The device also meets specific vibration and shock resistance standards.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its robust design and reliable performance make it suitable for various industrial and commercial uses.
Rated for 240VAC (IEC) and 277VAC (UL/CSA) and 60VDC.
Panel mount.
-30°C to 60°C.
1.5A.
2 poles.
50,000 switching cycles.
Greater than 2.5 kV.
