| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

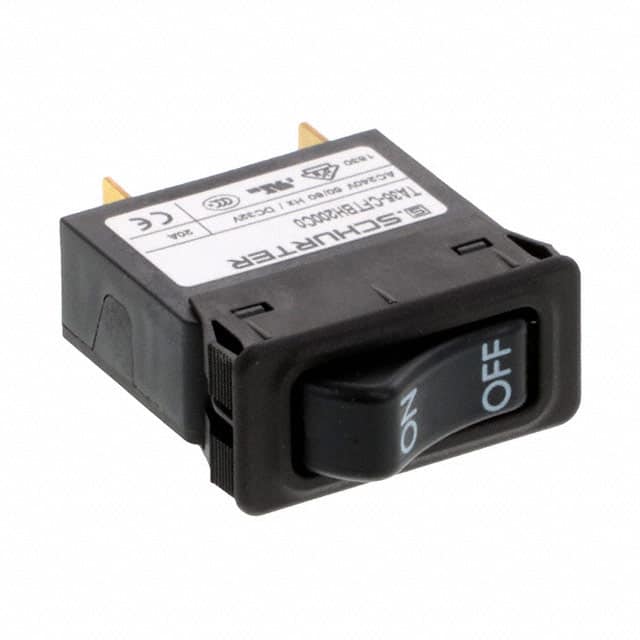

The Schurter Inc. 4435.021 is a thermal circuit breaker designed for equipment protection. It operates with a 20A current rating and supports AC voltages up to 240V (IEC) or 277V (UL/CSA), and DC voltages up to 32V.
This 1-pole breaker features a rocker actuation type and a panel mount for easy integration into systems. It offers a mechanical lifetime of 50,000 switching cycles and specific AC/DC electrical lifetimes. The operating temperature range is -30°C to 60°C.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. It provides essential overcurrent protection in various industrial and household devices.
The rated AC voltage is 240 VAC (IEC) and 277 VAC (UL/CSA). The rated DC voltage is 32 VDC.
The operating temperature range is -30°C to 60°C.
The degree of protection on the front side is IP40 according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
The rated current is 20 A.
