| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

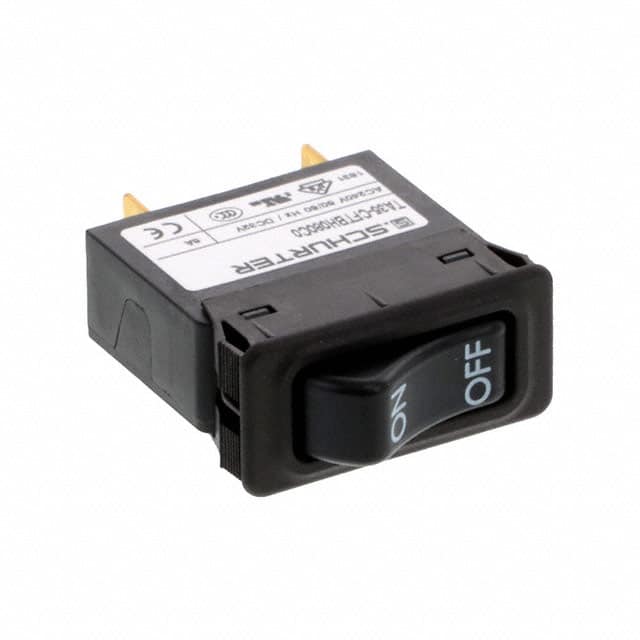

This Schurter Inc. 4435.0206 is a thermal circuit breaker with a single pole configuration. It is designed for panel mounting and offers a current rating of 8A with a voltage rating of 240VAC and 32VDC.
The breaker operates on a thermal tripping principle and features a rocker actuation type. It has a mechanical lifetime of 50,000 switching cycles and electrical lifetime ratings of 30,000 cycles at AC and 50,000 cycles at DC under specific load conditions.
Environmental specifications include an operating temperature range of -30°C to 60°C and vibration resistance up to 10G. The front side offers an IP40 degree of protection.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
240VAC (277VAC UL/CSA) and 32VDC.
-30°C to 60°C.
8A, with a rated current range of 0.05 to 20A.
50,000 switching cycles.
IP40 on the front side per IEC 60529.
>2.5 kV at 50 Hz and >4 kV impulse.
