| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

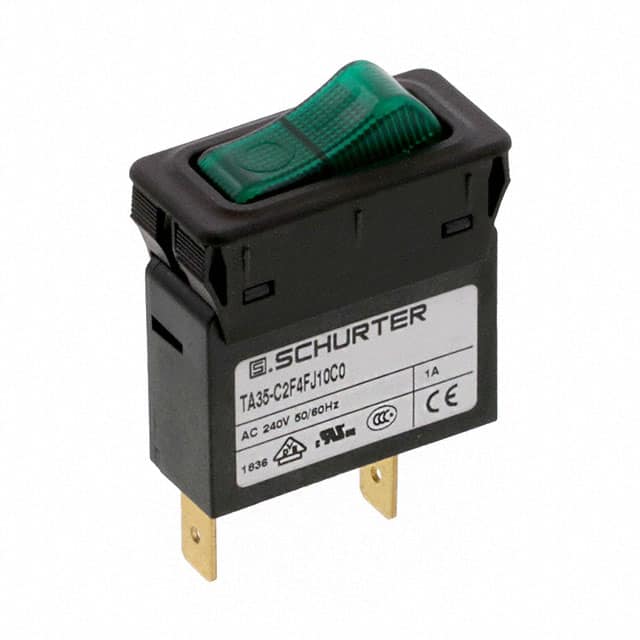

The Schurter Inc. 4435.0179 is a 1-pole thermal circuit breaker designed for equipment protection. It features a rocker actuation type and a panel mount configuration.
Key electrical specifications include a rated AC voltage of 240 VAC (IEC) and 277 VAC (UL/CSA), a rated DC voltage of 32 VDC, and a current rating range from 0.05 to 20 A. The conditional short circuit capacity is 2 kA at 240 VAC according to IEC 60934.
This circuit breaker has a mechanical lifetime of 50,000 switching cycles and electrical lifetimes of 30,000 cycles AC and 50,000 cycles DC. It operates within an ambient temperature range of -30 °C to 60 °C.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The rated voltages are 240 VAC (IEC), 277 VAC (UL/CSA), and 32 VDC.
The allowable operating temperature range is -30°C to 60°C.
It is designed for panel mount installation.
The tripping type is thermal.
The mechanical lifetime is 50,000 switching cycles.
The front side degree of protection is IP40 according to IEC 60529.
Yes, it has green illumination rated at 240V.
