| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

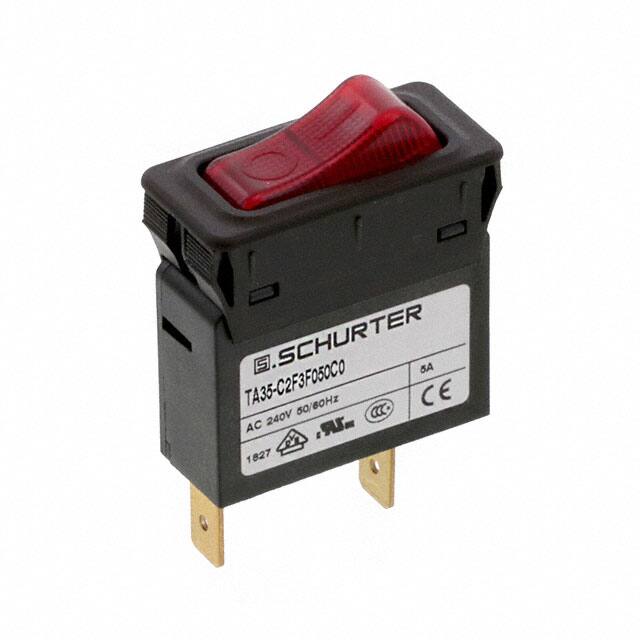

The Schurter Inc. 4435.0176 is a thermal circuit breaker designed for reliable circuit protection. This 1-pole breaker features a rocker actuation type and a panel mount for easy integration into various systems.
Key electrical specifications include a rated current of 5A and a rated AC voltage of 240V, with a DC voltage rating of 32V. The breaker offers a conditional short circuit capacity of 2 kA at 240 VAC. It operates within a temperature range of -30°C to 60°C.
This circuit breaker is suitable for applications requiring robust thermal protection. Its design includes a mechanical lifetime of 50,000 switching cycles and specific overload trip characteristics defined by IEC and UL/CSA standards.
The device has a degree of protection of IP40 on the front side, ensuring protection against solid objects. It is built with a focus on durability and performance in industrial environments.
The Schurter 4435.0176 is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 32 VDC.
The allowable operating temperature range is -30 °C to 60 °C.
The rated current is 5A, with an AC current range of 0.05 to 20 A.
It uses a rocker actuator with red illumination.
The mechanical lifetime is 50,000 switching cycles.
The front side has IP40 protection according to IEC 60529.
