| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

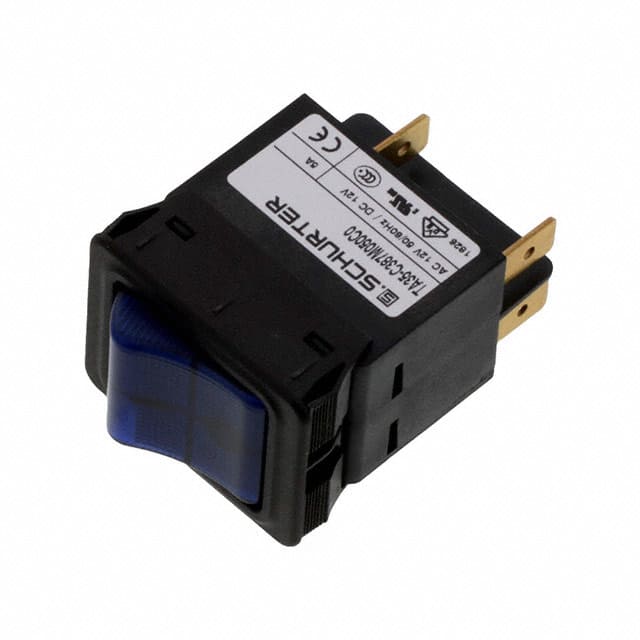

The Schurter Inc. 4435.0169 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It features rocker actuation and a panel mount configuration, making it suitable for various industrial applications.
This circuit breaker operates with a rated current of 5A and supports AC voltages up to 240 VAC and DC voltages up to 60 VDC. It offers a conditional short circuit capacity of 2 kA at 240 VAC. The device has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30 °C to 60 °C.
Key specifications include a degree of protection of IP40, dielectric strength of > 2.5 kV, and insulation resistance of > 100 MΩ. The tripping type is thermal-magnetic, providing robust protection against overloads and short circuits. The unit is illuminated in blue with a nominal voltage of 12V.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and equipment for construction. Its high configurability and reliable performance make it a versatile component for demanding environments.
The rated AC voltage is 240 VAC (IEC) and 277 VAC (UL/CSA).
The rated DC voltage is 60 VDC.
The current rating is 5A.
This circuit breaker has 2 poles.
The allowable operation temperature is -30 °C to 60 °C.
It uses rocker actuation.
