| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

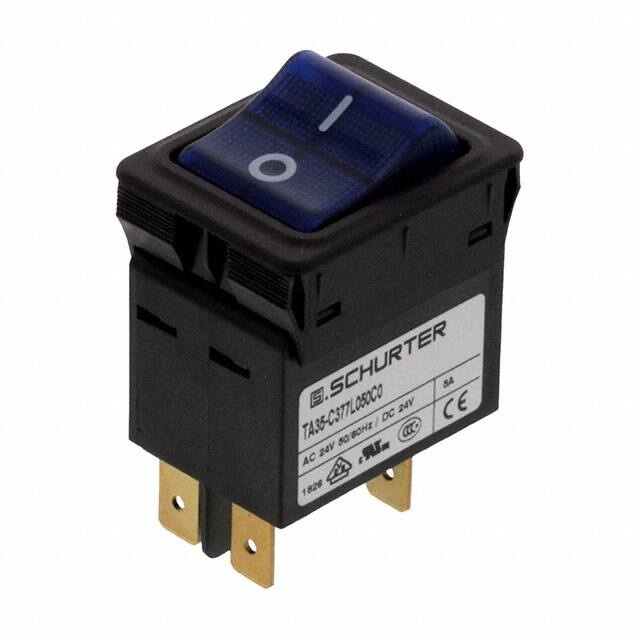

The Schurter Inc. 4435.0168 is a 2-pole thermal circuit breaker suitable for various industrial applications. It offers a rated current of 5A and can handle AC voltages up to 240 VAC and DC voltages up to 60 VDC. The breaker features a positively trip-free release mechanism and rocker actuation for user interaction.
Designed for reliability, this circuit breaker has a mechanical lifetime of 50,000 switching cycles. It operates within a temperature range of -30 °C to 60 °C. The unit is designed for panel mounting, providing a secure and accessible installation point in equipment.
Key technical specifications include a short circuit capacity of 2 kA at 240 VAC and an ingress protection rating of IP40 on the front side. The Schurter 4435.0168 is built to meet demanding operational requirements in industrial settings.
Rated 240VAC (IEC), 277VAC (UL/CSA), and 60VDC.
5A AC (rated current range 0.05-20A).
-30°C to 60°C.
Panel mount.
Thermal (also available as thermal-magnetic).
24V nominal.
50,000 switching cycles.
