| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

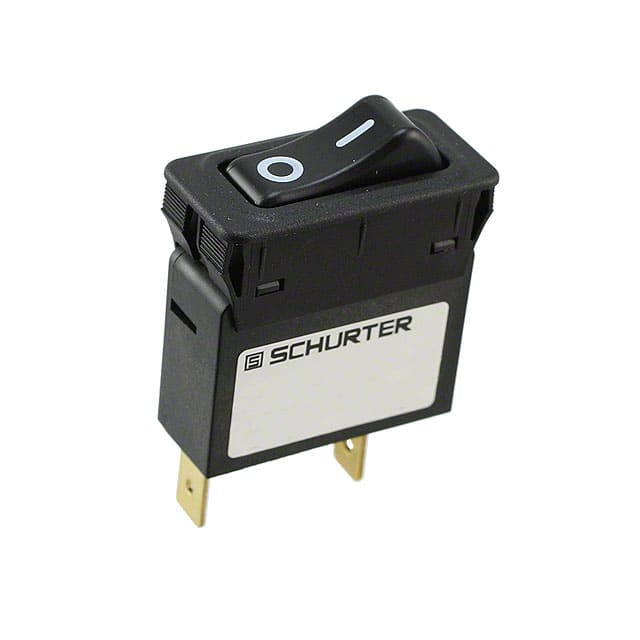

The Schurter Inc. 4435.0155 is a thermal circuit breaker with a 1-pole configuration, suitable for general industrial use. It features a positively trip-free release mechanism and rotary knob actuation for easy operation, even with gloves.
This circuit breaker is rated for 240 VAC and 32 VDC, with a current range of 0.05 to 20 A. It offers a conditional short circuit capacity of 2 kA at 240 VAC and has a degree of protection of IP40 on the front side.
Designed for panel mounting, the TA35 series breaker has a mechanical lifetime of 50,000 switching cycles. Its operating temperature range is -30 °C to 60 °C.
Applications include power tools, industrial appliances, construction equipment, cleaning equipment, and commercial/household kitchen appliances. The part is available without a bezel/knob for customized front panel designs.
The rated current is 50mA (0.05A).
It is rated for 240VAC (IEC) and 277VAC (UL/CSA) as well as 32VDC.
The allowable operating temperature range is -30°C to 60°C.
It uses a rotary knob actuator.
It is designed for panel mounting.
