| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

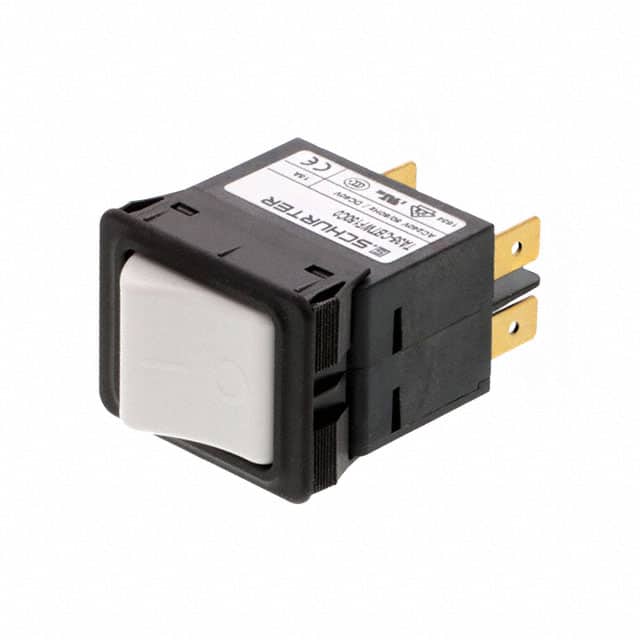

The Schurter Inc. 4435.0147 is a 2-pole thermal circuit breaker designed for equipment protection. It offers a rated current range of 0.05 to 20A AC and a magnetic release capability up to 16A. The breaker operates at 240 VAC and 60 VDC, with a conditional short circuit capacity of 2 kA at 240 VAC.
Featuring a rocker actuation type and panel mount design, this circuit breaker is suitable for various applications including power tools, medical equipment, industrial appliances, and construction equipment. It has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30 °C to 60 °C.
The TA35 series breaker provides thermal tripping and thermal-magnetic tripping types. It meets IP40 degree of protection on the front side and has a dielectric strength of over 2.5 kV AC. The insulation resistance is greater than 100 MΩ at 500 VDC.
The rated voltage is 240 VAC and 60 VDC.
The current rating is 15A.
It uses a rocker actuator.
The operating temperature range is -30 °C to 60 °C.
Yes, it is RoHS3 Compliant.
