| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Package / Case | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

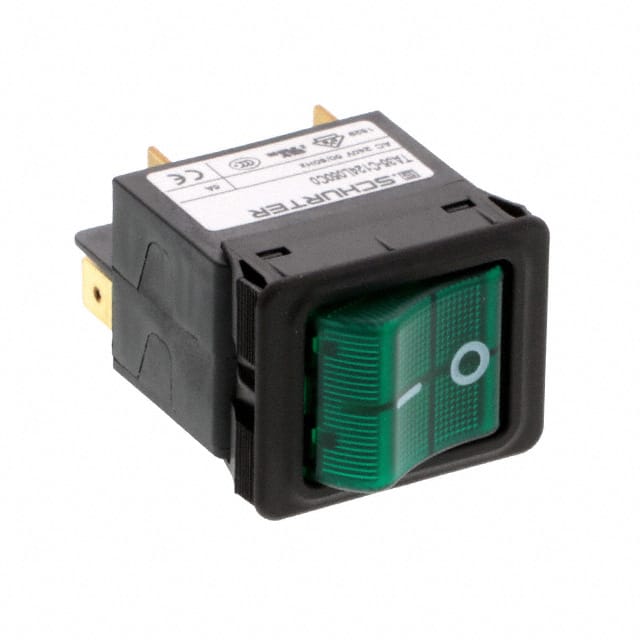

This Schurter Inc. 4435.0145 is a thermal circuit breaker designed for equipment protection. It is a 2-pole device with a rocker actuation type and panel mount capability.
The circuit breaker has a rated current of 5A and can handle AC voltages up to 240V and DC voltages up to 60V. It offers a conditional short circuit capacity of 2 kA at 240 VAC.
Key features include a thermal tripping type and a mechanical lifetime of 50,000 switching cycles. The operating temperature range is from -30°C to 60°C.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The rated current is 5A.
It is rated for 240VAC (IEC), 277VAC (UL/CSA), and 60VDC.
The allowable operating temperature range is -30°C to 60°C.
It uses a rocker actuator with green illumination.
The front side is protected to IP40 per IEC 60529.
It is a 2-pole circuit breaker.
It is rated for a minimum of 50,000 mechanical switching cycles.
