| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

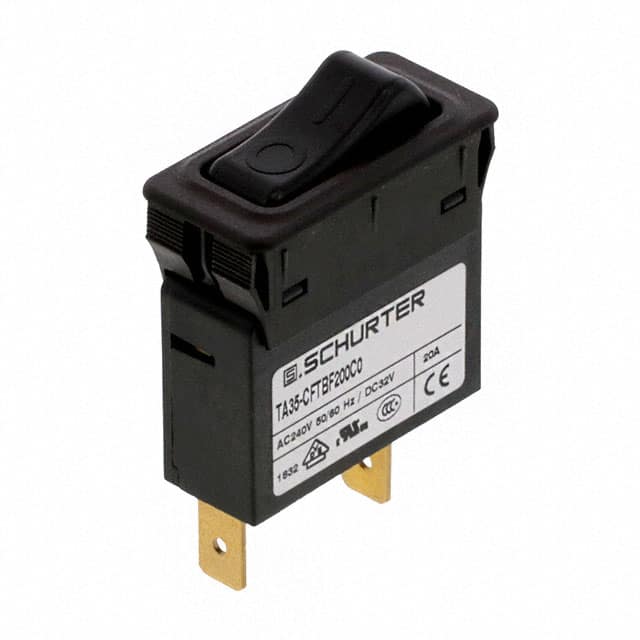

The Schurter Inc. 4435.0138 is a 1-pole thermal circuit breaker designed for equipment protection. It features a rocker actuation type and a panel mount for easy integration into various systems.
This circuit breaker operates with a rated AC voltage of 240 VAC (IEC) and 277 VAC (UL/CSA), and a rated DC voltage of 32 VDC. The current rating ranges from 0.05A to 20A. It has a conditional short circuit capacity of 2 kA at 240 VAC according to IEC 60934.
Environmental specifications include an operating temperature range of -30°C to 60°C and a storage temperature range of -40°C to 60°C. The degree of protection on the front side is IP40.
Mechanical lifetime is rated at 50,000 switching cycles. Electrical lifetime is 30,000 cycles at AC (cos φ 0.6) and 50,000 cycles at DC (L/R = 2-3 ms). Overload protection meets IEC standards with a minimum of 40 trips at 6x Ir and UL/CSA standards with a minimum of 50 trips at 1.5x Ir.
Applications include power tools, medical and laboratory equipment, industrial appliances, and cleaning equipment.
The rated voltage is 240VAC (IEC), 277VAC (UL/CSA), and 32VDC.
The operating temperature range is -30°C to 60°C.
The circuit breaker is panel mounted.
The front side is rated IP40 according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
