| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Package / Case | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

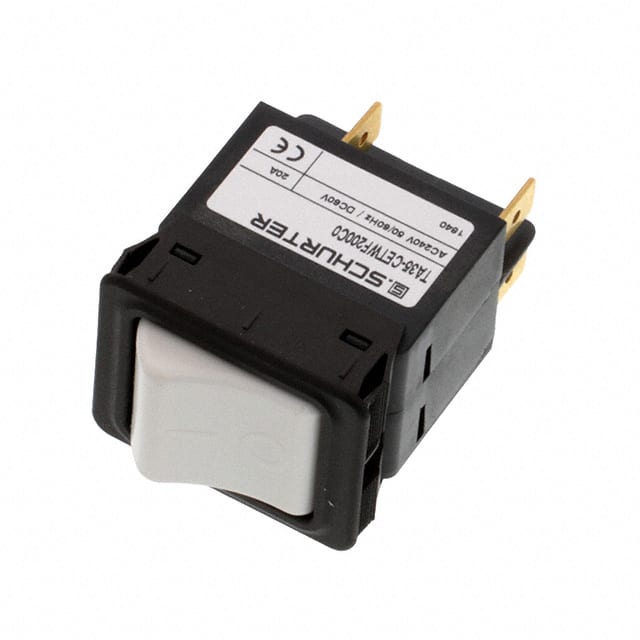

This Schurter Inc. 4435.0121 is a thermal circuit breaker with a 2-pole configuration, suitable for panel mounting. It operates with a rated voltage of 240 VAC or 60 VDC and has a current rating of 20A.
The breaker offers a thermal tripping type and a conditional short circuit capacity of 2 kA at 240 VAC. It is designed for a wide range of applications including power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
Key specifications include a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30 °C to 60 °C. The degree of protection on the front side is IP40.
This series offers high configurability, including different rocker colors and lettering, and can achieve IP65 protection with an optional cover. It is designed for short-circuit protection with a magnetic release feature.
The 4435.0121 has a current rating of 20A.
It is rated for 240VAC (IEC) and 277VAC (UL/CSA) as well as 60VDC.
It uses a thermal-magnetic tripping mechanism.
The allowable operating temperature range is -30°C to 60°C.
The front side is rated IP40 according to IEC 60529.
It is a 2-pole circuit breaker.
It has a mechanical lifetime of 50,000 switching cycles.
