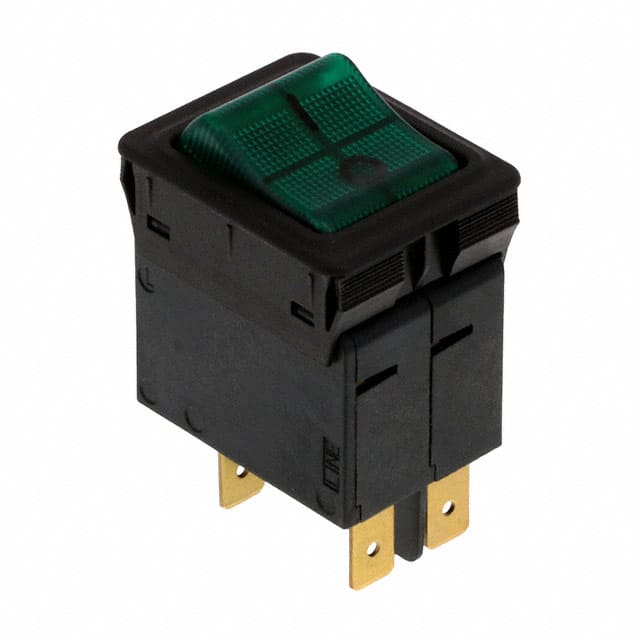

The Schurter Inc. 4435.0117 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It features a rocker actuation type and a current rating of 4A, with a rated voltage of 240 VAC and 60 VDC.
This circuit breaker offers a conditional short circuit capacity of 2 kA at 240 VAC according to IEC 60934. It has a degree of protection of IP40 on the front side and meets stringent dielectric strength and insulation resistance requirements. The device is built for durability with a mechanical lifetime of 50,000 switching cycles.
Designed for panel mounting, the 4435.0117 operates within a temperature range of -30 °C to 60 °C. Its robust construction is further validated by its resistance to vibration and shock, making it suitable for demanding industrial applications.
Key specifications include a tripping type of Thermal-Magnetic, with overload protection meeting IEC standards (min. 40 trips @ 6 x Ir) and UL/CSA standards (min. 50 trips @ 1.5 x Ir). The breaker also includes green illumination with a nominal voltage of 240V.
The 4435.0117 is rated for 240 VAC, 277 VAC under UL/CSA, and 60 VDC.
The product data specifies 4 A; the datasheet lists an AC rated current range of 0.05 A to 20 A.
The breaker uses thermal tripping.
-30 °C to 60 °C.
The breaker is a panel-mount device.
2 kA per IEC 60934 at 240 VAC.
Mechanical, AC, and DC lifetimes are each rated at 50,000 switching cycles.
