| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

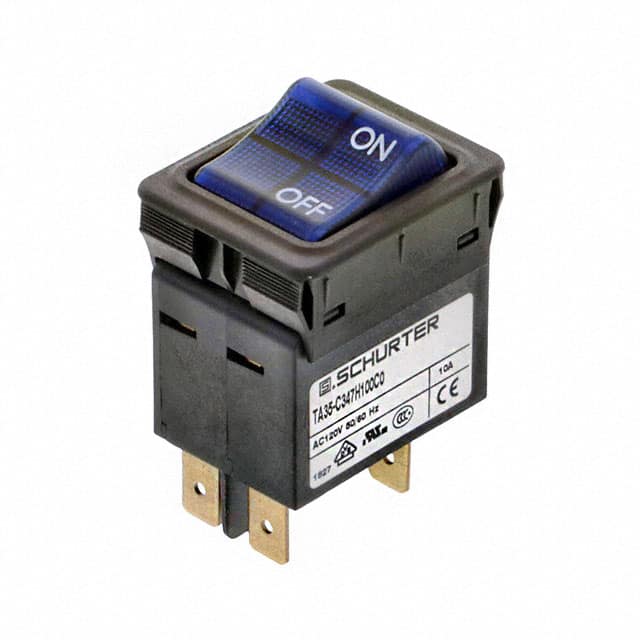

The Schurter Inc. 4435.0108 is a thermal circuit breaker suitable for various industrial applications. It offers a current rating of 10A and a voltage rating of 240V AC, with a DC voltage rating of 60V.
This circuit breaker is designed for panel mounting and features a rocker actuator for operation. It has a tripping type of thermal and thermal-magnetic, with a conditional short circuit capacity of 2 kA at 240 VAC. The device provides a degree of protection of IP40 on the front side.
Key electrical specifications include a dielectric strength of over 2.5 kV and an impulse dielectric strength of over 4 kV. The insulation resistance is rated at over 100 MΩ at 500 VDC. Mechanical lifetime is rated for 50,000 switching cycles, with electrical lifetimes also at 50,000 cycles under specified AC and DC conditions.
Environmental data indicates an operating temperature range of -30 °C to 60 °C and a storage temperature range of -40 °C to 60 °C. It also includes vibration resistance and shock resistance specifications according to IEC standards. The RoHS status is listed as RoHS3 Compliant, MSL as 1 Unlimited, and REACH as Unaffected, though these compliance statuses are unverified.
The breaker is rated for 240 VAC (IEC) and 277 VAC (UL/CSA) as well as 60 VDC.
The rated current is 10A.
-30°C to 60°C.
CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, UL1077.
120V nominal.
Greater than 2.5 kV at 50 Hz.
50,000 switching cycles.
