| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

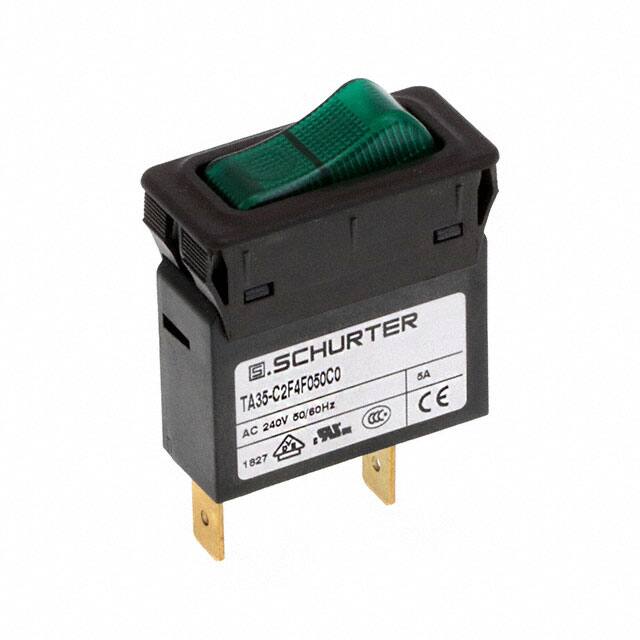

The Schurter Inc. 4435.0103 is a 1-pole thermal circuit breaker designed for panel mounting with rocker actuation. It offers a wide rated current range from 0.05A to 20A, with this specific model rated at 5A. The breaker operates at AC voltages up to 240 VAC (IEC) and 277 VAC (UL/CSA), and DC voltages up to 32 VDC.
Key electrical specifications include a conditional short circuit capacity of 2 kA at 240 VAC. The device has a mechanical lifetime of 50,000 switching cycles and AC/DC lifetimes of 30,000 and 50,000 cycles respectively. It operates within a temperature range of -30°C to 60°C.
This circuit breaker is suitable for various applications including power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. It features a degree of protection of IP40 on the front side and has a weight between 16.5 and 18.5 grams.
The rated current is 5A.
It is rated for 240VAC (IEC), 277VAC (UL/CSA), and 32VDC.
It uses rocker actuation.
The allowable operating temperature range is -30°C to 60°C.
The mechanical lifetime is 50,000 switching cycles.
It is a single-pole (1-pole) circuit breaker.
It is designed for panel mount installation.
