| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

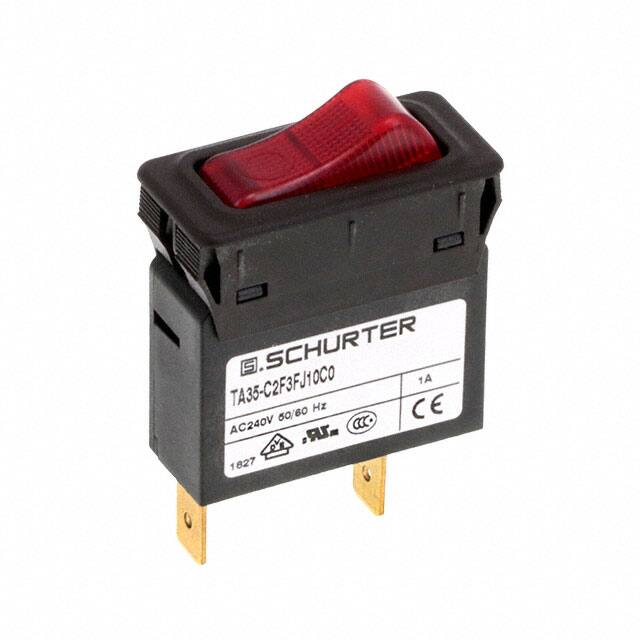

This Schurter Inc. TA35 series thermal circuit breaker (part number 4435.0102) offers reliable overcurrent protection for various applications. It is a 1-pole device with a thermal tripping mechanism and rocker actuation, suitable for panel mounting.
The circuit breaker is rated for 240 VAC (IEC) or 277 VAC (UL/CSA) and 32 VDC. It has a current rating range from 0.05 to 20 A, with this specific model set at 1A. Key electrical specifications include a conditional short circuit capacity of 2 kA at 240 VAC and an insulation resistance greater than 100 MΩ at 500 VDC.
Designed for industrial environments, the TA35 series operates within a temperature range of -30°C to 60°C. It meets IP40 degree of protection on the front side. The mechanical lifetime is rated for 50,000 switching cycles, with AC lifetime at 30,000 cycles and DC lifetime at 50,000 cycles.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. It offers high configurability with various rocker colors and illumination options.
It is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 32 VDC.
-30 to 60 °C.
Panel mount.
Thermal.
1 A.
50,000 switching cycles.
IP40.
