| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Rated Current | |
| Storage Temperature | |
| Terminal | |
| Type | |
| Voltage Rating | |
| Weight |

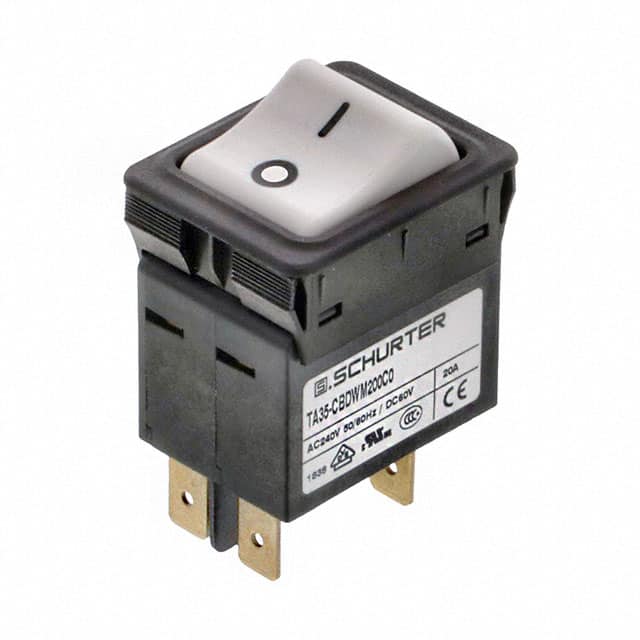

This Schurter 4435.0094 circuit breaker is a 2-pole thermal type designed for equipment protection. It offers a rated current of 20A and a maximum AC voltage rating of 240 VAC, with a DC voltage rating of 60 VDC.
The breaker features rocker actuation and a panel mount design for easy integration into systems. It has a tripping type of thermal and supports thermal-magnetic tripping. The operating temperature range is -30 °C to 60 °C.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. It provides reliable short-circuit protection and overload protection.
Key specifications include a conditional short circuit capacity of 2 kA at 240 VAC, dielectric strength greater than 2.5 kV at 50 Hz, and insulation resistance greater than 100 MΩ at 500 VDC. The mechanical lifetime is rated for 50,000 switching cycles.
It is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 60 VDC.
-30°C to 60°C.
>2.5 kV at 50 Hz and >4 kV impulse.
50,000 switching cycles.
Panel mount with a 26x34mm mounting hole.
Thermal (thermal-magnetic also available).
20A (with a range of 0.05-20A AC).
