| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Industrial Grade | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

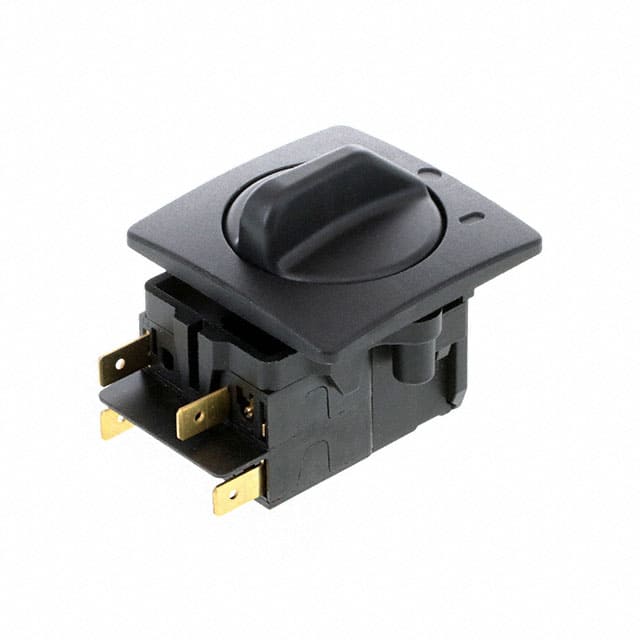

The Schurter Inc. 4435.0074 is a 2-pole thermal circuit breaker with a rotary knob actuation, suitable for panel mounting. It offers a rated voltage of 240 VAC (IEC) or 277 VAC (UL/CSA) and 60 VDC. The current rating ranges from 0.05 A to 20 A.
This circuit breaker is designed for general industrial use and features a positively trip-free release. It has a mechanical lifetime of 50,000 switching cycles and an electrical lifetime of 50,000 cycles at rated load. The operating temperature range is -30 °C to 60 °C.
Key specifications include a conditional short circuit capacity of 2 kA at 240 VAC, an IP40 degree of protection on the front side, and dielectric strength of > 2.5 kV. It meets IEC standards for overload capability.
Applications include power tools, industrial appliances, construction equipment, cleaning equipment, and commercial/household kitchen appliances. The product is available without a bezel/knob for customized front panel designs.
It is rated for 240 VAC (IEC) or 277 VAC (UL/CSA) and 60 VDC.
It is designed for panel mount installation.
The operating temperature range is -30 °C to 60 °C.
The continuous rated current is 20 A.
It is a 2-pole circuit breaker.
The tripping type is thermal.
The front side has IP40 protection per IEC 60529.
