| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

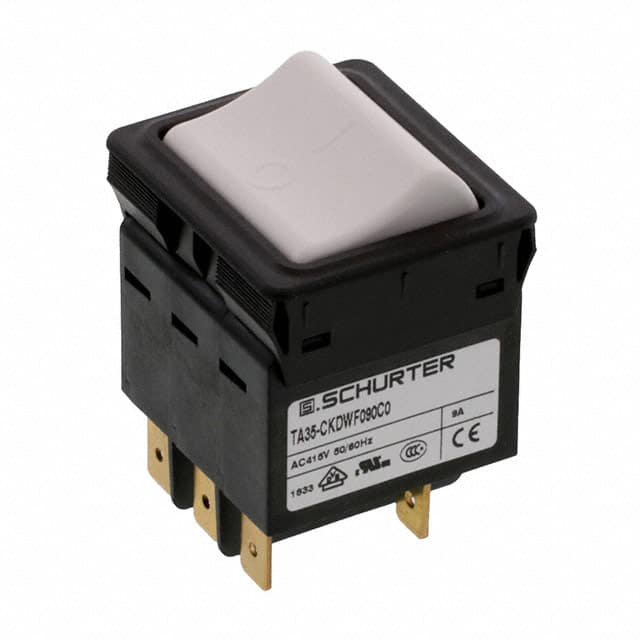

The Schurter 4435.0068 is a thermal circuit breaker from the TA35 series, designed for reliable circuit protection in various industrial applications. This 3-pole device features a rocker actuation type and is suitable for panel mounting.
Key electrical specifications include a rated current range of 0.05 to 12A AC, with this specific model rated at 9A. The operating voltage is 240V AC, and it offers a conditional short-circuit capacity of 2 kA at 415 VAC. The breaker type is thermal, with a tripping mechanism based on thermal overload.
Mechanical and environmental characteristics include a durable construction suitable for industrial environments, with a weight of 43.0 - 45.0 g. It has a degree of protection of IP40 on the front side. The operating temperature range is -30 °C to 60 °C, and storage temperature ranges from -40 °C to 60 °C.
This circuit breaker is designed for applications such as power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. It offers a mechanical lifetime of 50,000 switching cycles.
240 VAC (also supports 415 VAC in Y-configuration).
Bulk.
-30°C to 60°C.
9 A.
Thermal.
Rocker.
3 poles.
