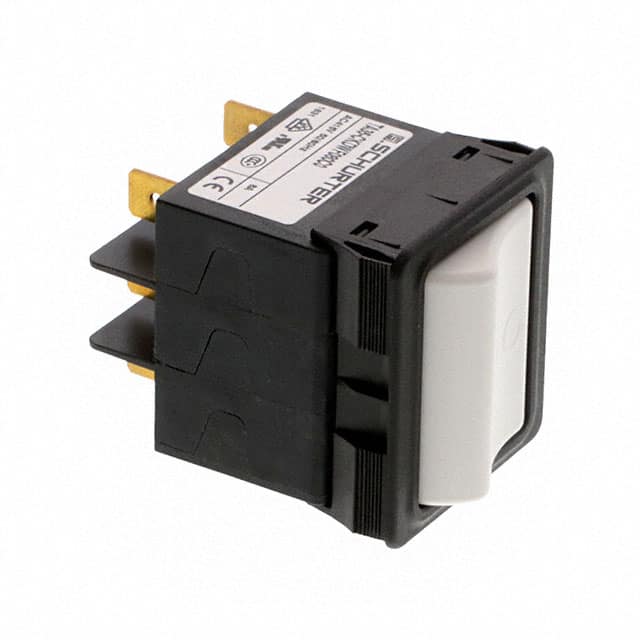

The Schurter Inc. 4435.0066 is a 3-pole thermal circuit breaker designed for reliable overcurrent protection. It offers a rated current of 8A and a voltage rating of 240VAC. The breaker features a rocker actuation type for easy operation and a panel mount design for secure installation.
Key technical specifications include a thermal tripping type, a conditional short circuit capacity of 2 kA at 415 VAC, and an IP40 degree of protection on the front side. The device is built for durability with a mechanical lifetime of 50,000 switching cycles. It operates within a temperature range of -30°C to 60°C.
This circuit breaker is suitable for various industrial applications, including power tools, medical equipment, industrial appliances, and construction equipment. Its robust construction and reliable performance make it a dependable choice for protecting electrical circuits from overloads and short circuits.
The rated voltage AC is 415 Y VAC / 240 VAC.
The allowable operating temperature range is -30°C to 60°C.
The rated current range AC is 0.05 to 12 A, with a nominal rating of 8 A.
It has 3 poles.
Panel mount.
IP40 on the front side according to IEC 60529.
Thermal tripping.
