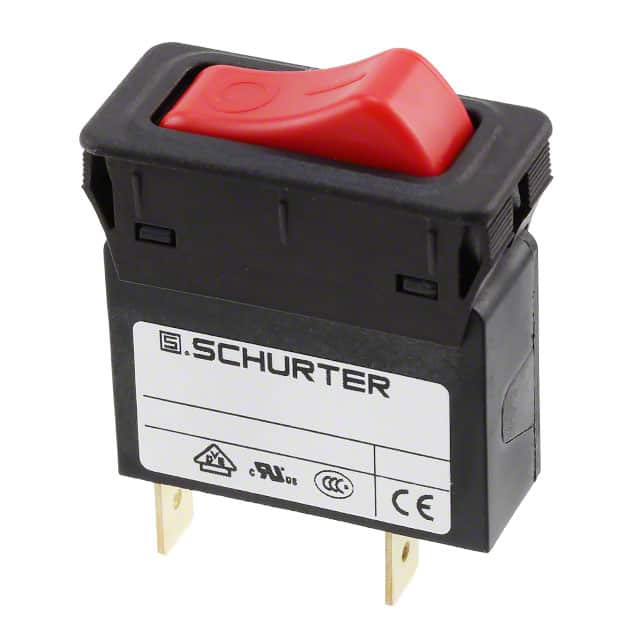

The Schurter Inc. 4435.0056 is a 1-pole thermal circuit breaker designed for reliable overcurrent protection. It operates with a rated voltage of 240 VAC (IEC) and a unique UL rating of 277 VAC, along with 32 VDC.
This circuit breaker features a rocker actuation type and a panel mount for easy integration into various equipment. It offers a wide current range from 0.05A to 20A, with this specific model rated at 10A. The device has a mechanical lifetime of 50,000 switching cycles and is built to withstand demanding environmental conditions, operating between -30°C and 60°C.
Key specifications include a conditional short circuit capacity of 2 kA at 240 VAC, dielectric strength of >2.5 kV, and insulation resistance of >100 MΩ. The front side offers IP40 protection according to IEC 60529. Applications include power tools, medical and laboratory equipment, industrial appliances, and cleaning equipment.
Approvals include CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077, ensuring compliance with various safety standards.
The rated voltage is 240 VAC for IEC and 277 VAC for UL/CSA.
The current rating range is 0.05A to 20A, with this specific model rated at 10A.
It uses rocker actuation.
The allowable operating temperature is from -30°C to 60°C.
It is a 1-pole circuit breaker.
Approvals include CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
