| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

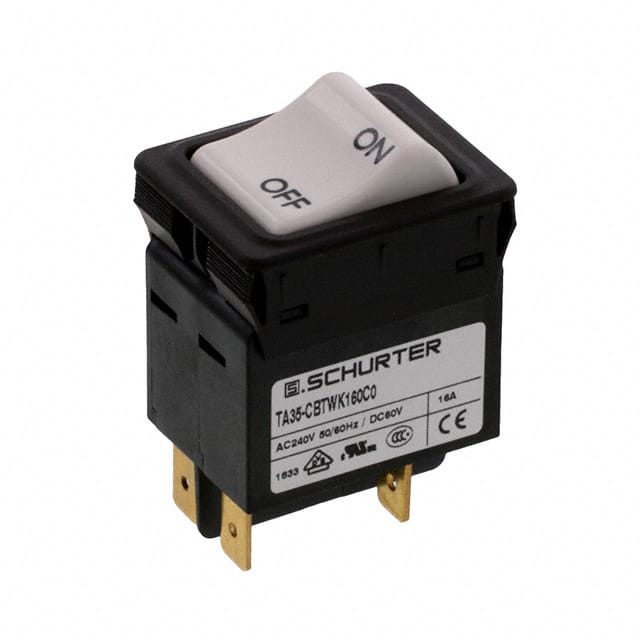

This Schurter 4435.0051 is a 2-pole thermal circuit breaker from the TA35 series. It is designed for panel mounting and features a rocker actuation type. The breaker has a rated current of 16A and a rated voltage of 240 VAC, with a DC rating of 60 VDC.
Key electrical specifications include a conditional short circuit capacity of 2 kA at 240 VAC. The device offers a degree of protection of IP40 on the front side. It has a mechanical lifetime of 50,000 switching cycles and electrical lifetimes of 50,000 cycles for both AC and DC operation under specified conditions.
The operating temperature range is -30 °C to 60 °C, with a storage temperature range of -40 °C to 60 °C. The circuit breaker also exhibits vibration resistance according to IEC 60068-2-6 and shock resistance according to IEC 60068-2-27.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, equipment for construction, cleaning equipment, and commercial and household kitchen appliances.
It is rated for 240VAC (IEC), 277VAC (UL/CSA), and 60VDC.
The allowable operating temperature range is -30°C to 60°C.
It is designed for panel mount installation.
It offers thermal and thermal-magnetic tripping.
It features a rocker actuator.
Both mechanical and electrical lifetime are 50,000 switching cycles.
