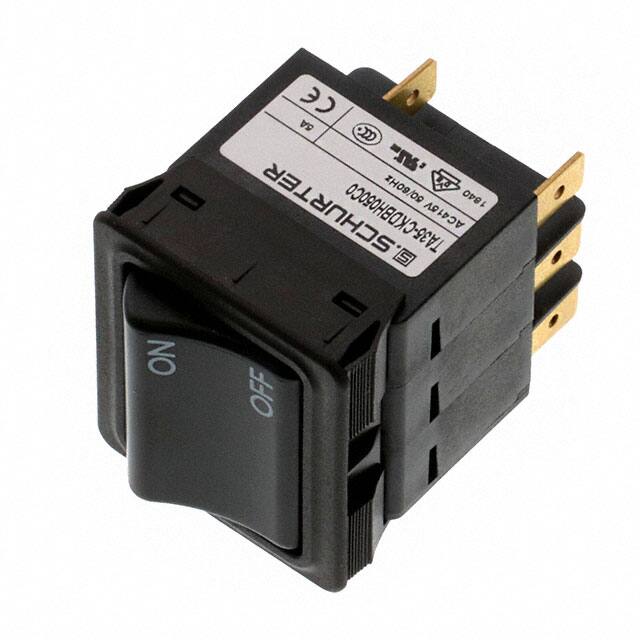

The Schurter Inc. 4435.0048 is a thermal circuit breaker designed for reliable protection in various applications. This 3-pole unit offers a rated current of 5A and a voltage rating of 240VAC.
Key specifications include a thermal tripping type and rocker actuation for user interaction. The circuit breaker is designed for panel mounting, ensuring straightforward integration into equipment. It operates within a temperature range of -30°C to 60°C and has a mechanical lifetime of 50,000 switching cycles.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its robust construction and adherence to standards like IEC 60934 make it suitable for demanding environments.
With a degree of protection of IP40 on the front side, it offers protection against solid objects. The dielectric strength is rated at >2.5 kV at 50 Hz and >4 kV impulse, ensuring electrical safety.
The rated voltage is 415Y / 240 VAC.
The current rating is 5A.
It has 3 poles.
It uses rocker actuation.
The allowable operating temperature is -30°C to 60°C.
The mechanical lifetime is 50,000 switching cycles.
