| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

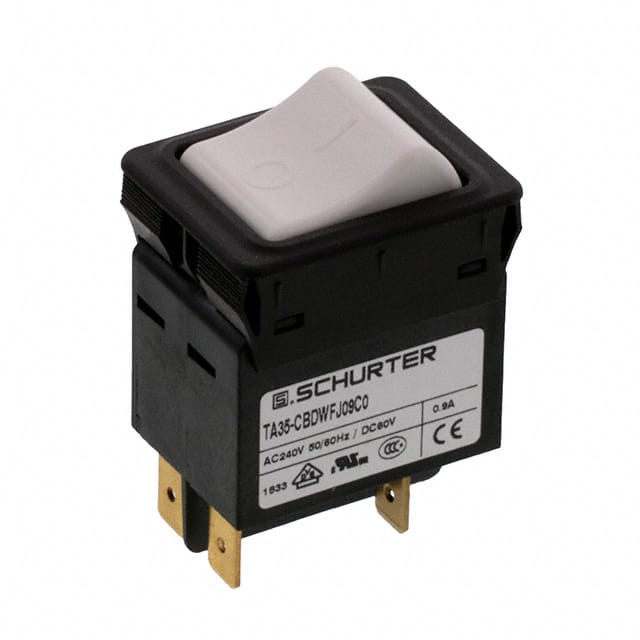

The Schurter Inc. 4435.0038 is a thermal circuit breaker from the TA35 series, designed for reliable circuit protection in various applications. This 2-pole breaker features a rocker actuator and a panel mount design for easy integration into equipment.
Key electrical specifications include a rated AC voltage of 240 VAC (UL/CSA rated at 277 VAC) and a DC voltage rating of 60 VDC. The current rating is 900mA, with a conditional short circuit capacity of 2 kA at 240 VAC. The breaker offers a mechanical lifetime of 50,000 switching cycles.
Environmental and thermal specifications include an operating temperature range of -30 °C to 60 °C and a degree of protection of IP40 on the front side. The breaker is built for durability, with resistance to vibration and shock.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its thermal tripping type ensures protection against overloads.
The circuit breaker is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 60 VDC.
The allowable operating temperature range is -30°C to 60°C.
The circuit breaker is panel mounted and supplied in bulk packaging.
The rated current is 900 mA (0.9 A).
Dielectric strength is greater than 2.5 kV at 50 Hz and greater than 4 kV impulse (1.2/50 μs).
The mechanical lifetime is 50,000 switching cycles.
The front side has IP40 protection according to IEC 60529.
