| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

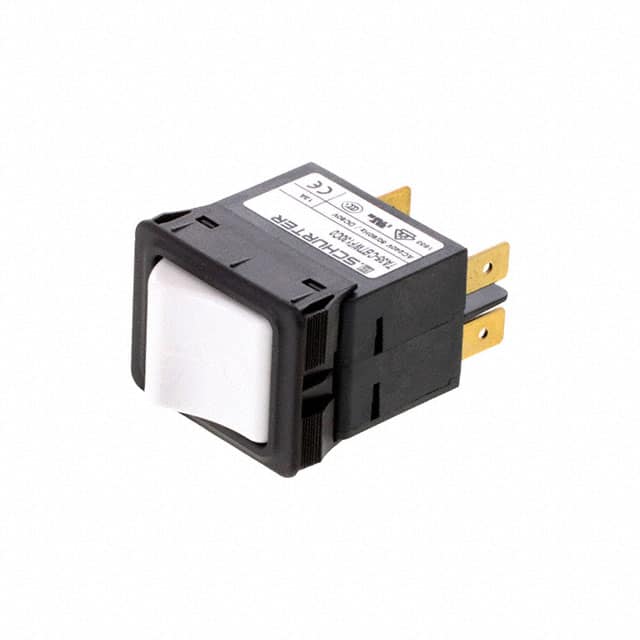

The Schurter Inc. 4435.0033 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It offers a rated current of 13A and a voltage rating of 240 VAC, with a DC rating of 60 VDC.
This circuit breaker features thermal tripping and rocker actuation, providing a positively trip-free release. It has a mechanical lifetime of 50,000 switching cycles and an AC lifetime of 50,000 cycles at 1x Ir, cos φ 0.6. The operating temperature range is from -30 °C to 60 °C.
Designed for panel mounting, the 4435.0033 has a degree of protection of IP40 on the front side. Its conditional short circuit capacity is 2 kA at 240 VAC. The unit also includes a magnetic release for short-circuit protection, with a rated current range of 0.05 - 20 A AC (magnetic up to 16 A).
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and equipment for construction. It is built to meet industrial standards with a dielectric strength of over 2.5 kV at 50 Hz and impulse strength over 4 kV.
240VAC (IEC), 277VAC (UL/CSA), and 60VDC.
-30°C to 60°C.
Panel mount.
Thermal-magnetic.
Greater than 2.5kV at 50Hz and greater than 4kV impulse (1.2/50μs).
50,000 switching cycles.
IP40 front side.
