| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

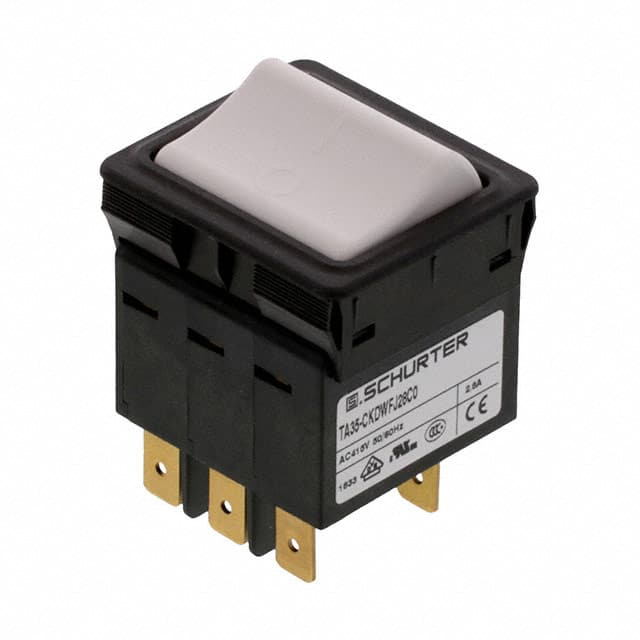

This Schurter Inc. 4435.0026 is a thermal circuit breaker with a 3-pole configuration, suitable for various industrial applications. It offers a rated current range from 0.05 to 12A and a rated voltage of 415Y/240 VAC.
The breaker features a rocker actuation type and a panel mount design for easy integration into control panels and equipment. It has a mechanical lifetime of 50,000 switching cycles and specific overload trip characteristics according to IEC and UL/CSA standards.
Environmental specifications include an operating temperature range of -30 °C to 60 °C and a degree of protection of IP40 on the front side. The circuit breaker also meets specific dielectric strength and insulation resistance requirements.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
It is rated for 240VAC (line-to-neutral) or 415Y/240VAC three-phase.
The rated current range is 0.05 to 12A, with a specific rating of 2.8A.
Thermal.
-30°C to 60°C.
Panel mount.
3 poles.
50,000 switching cycles.
