| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

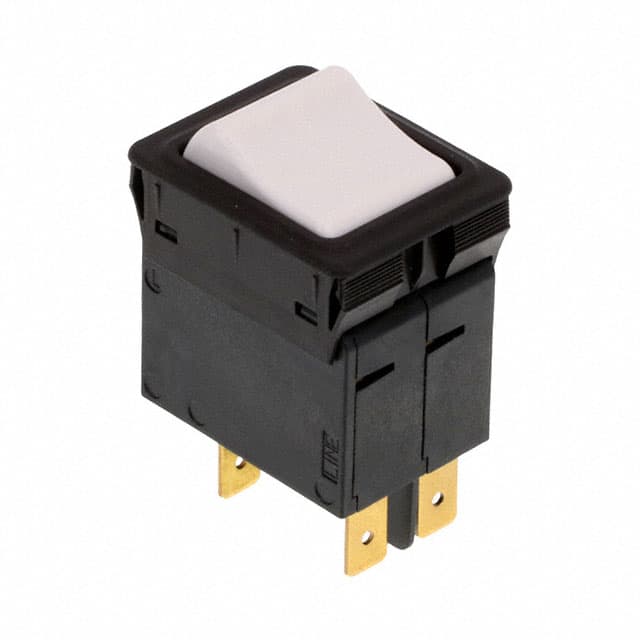

This Schurter Inc. 4435.0023 is a 2-pole thermal circuit breaker featuring rocker actuation and panel mount capability. It is rated for 240 VAC and 60 VDC, with a current range of 0.05 to 20 A AC (magnetic up to 16 A). The breaker provides a conditional short circuit capacity of 2 kA at 240 VAC and has a degree of protection of IP40 on the front side.
Designed for reliability, it offers a mechanical lifetime of 50,000 switching cycles and specific AC and DC lifetimes under load. The operating temperature range is -30 °C to 60 °C, with a storage temperature range of -40 °C to 60 °C. It also meets vibration and shock resistance standards according to IEC specifications.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its thermal tripping mechanism ensures protection against overloads, while the option for thermal-magnetic tripping provides short-circuit protection.
It is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 60 VDC.
The continuous current rating is 2.8 A AC, with a rated current range of 0.05 to 20 A AC.
-30°C to 60°C.
Panel mount.
IP40 according to IEC 60529.
50,000 switching cycles.
Thermal-magnetic tripping.
